Start With the Process, Not the Vessel
A vessel should be selected around the process it serves.
Two tanks with a similar capacity may require completely different materials, wall construction, supports, nozzles, internals or pressure design because their operating conditions are different.
Before deciding on a vessel type, define the project inputs that establish the actual operating envelope.
Define These Before Selecting Equipment
What will the equipment contain or process?
Consider the chemical composition, concentration, solids content, viscosity, corrosiveness and any cleanliness requirements associated with the medium.
What pressure conditions will the vessel experience?
Define atmospheric operation, positive pressure, partial vacuum, full vacuum, pressure cycling or alternating pressure and vacuum conditions.
What operating and design temperatures are required?
Define normal operation as well as temperatures during startup, heating, cooling, cleaning, shutdown and abnormal operating conditions.
What volume does the process actually require?
Clarify whether the project is defined by total volume, working volume, batch size, liquid level, residence time or process throughput.
What level of compatibility and cleanliness is needed?
Material selection may depend on corrosion potential, chloride exposure, product purity, contamination risk, cleanability and required service life.
What does the equipment actually need to do?
Once the process function is clear, the appropriate equipment category and configuration become much easier to narrow down.
Capacity alone is not enough to select a vessel. Pressure, temperature, medium, process duty and project requirements must be considered together.
What Does the Equipment Need to Do?
Different vessel types solve different process problems. Once the main process function is clear, the equipment category can usually be narrowed down before detailed engineering begins.
Storage Tanks

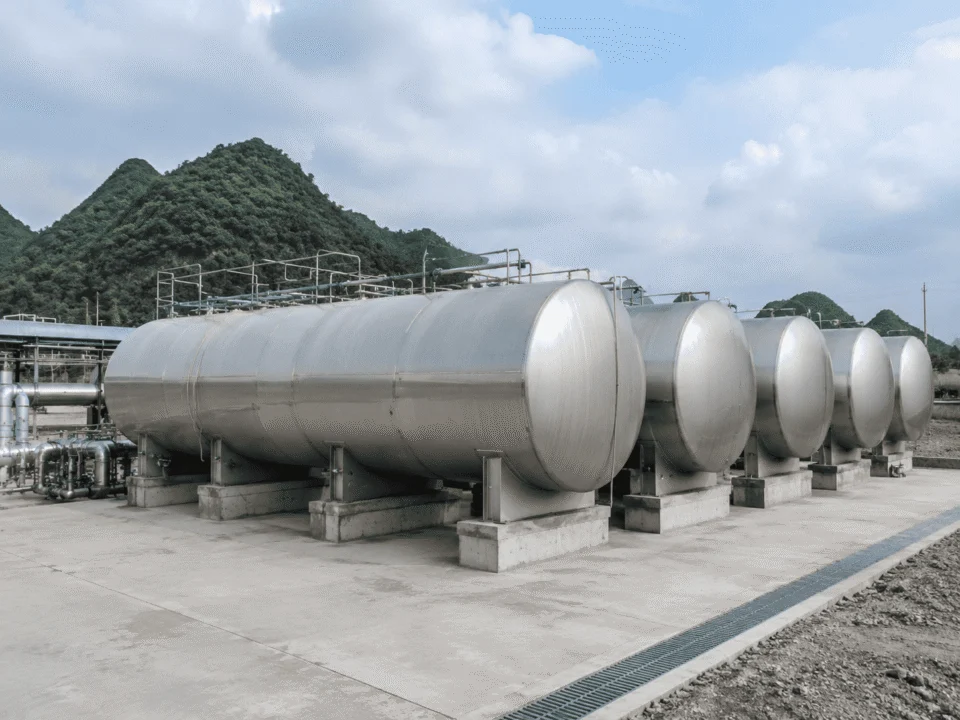

For storing raw materials, intermediate products, finished products, water, chemicals and other process liquids.
Pressure Vessels
For gases or liquids that must be contained safely above or below atmospheric pressure.
Reactors

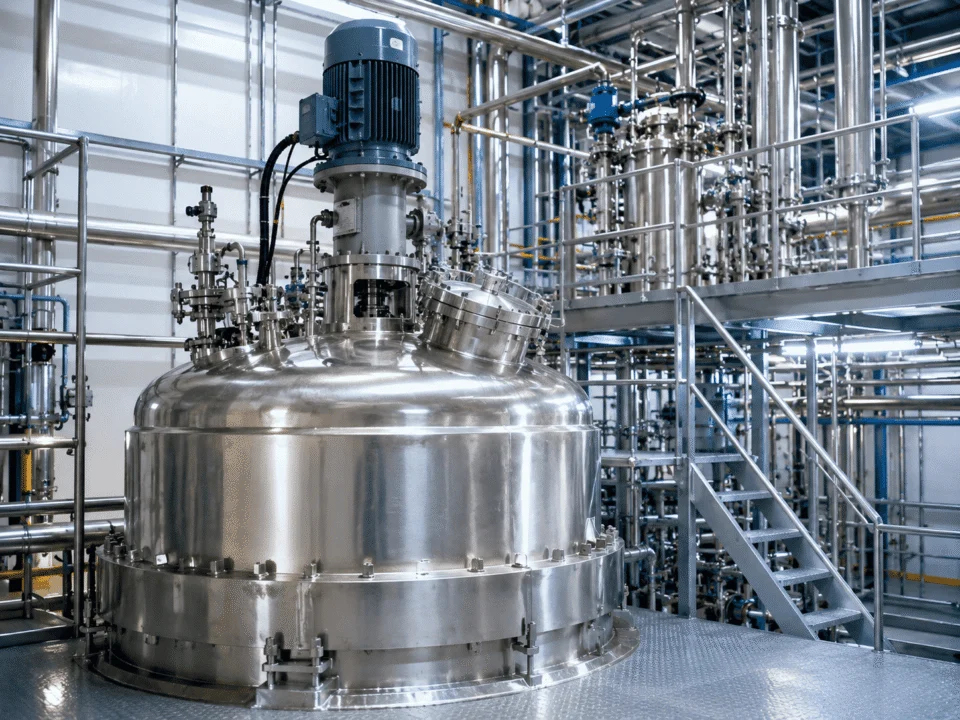

For controlled chemical or physical processes involving mixing, reaction, dissolution, blending, heating or cooling.
Heat Exchangers

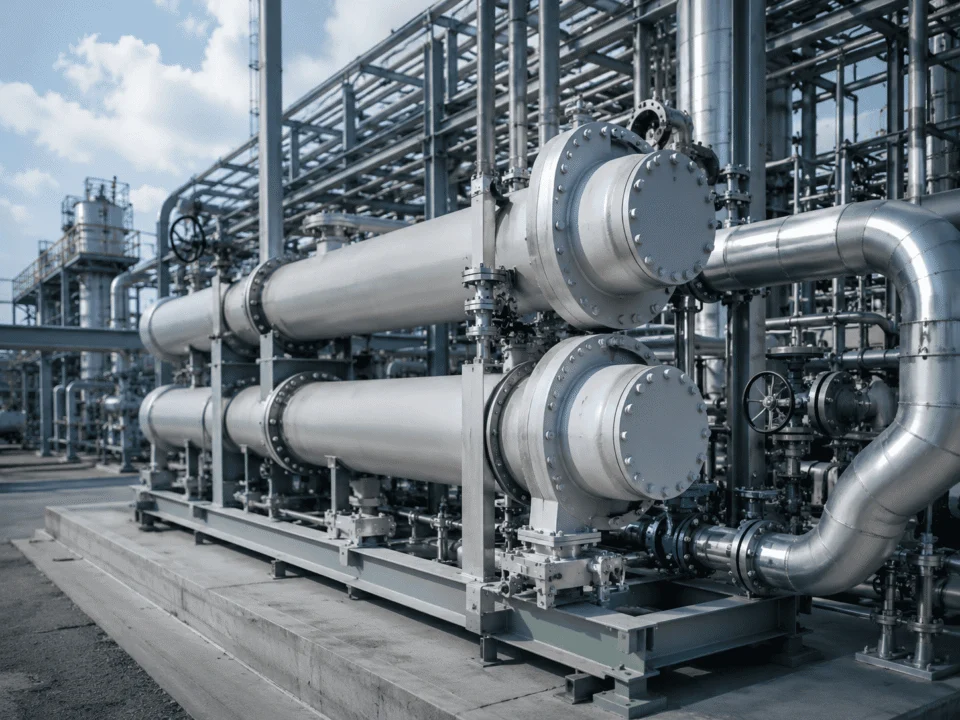

For heating, cooling, condensation, evaporation and heat recovery between process streams.
Separators & Filter Vessels

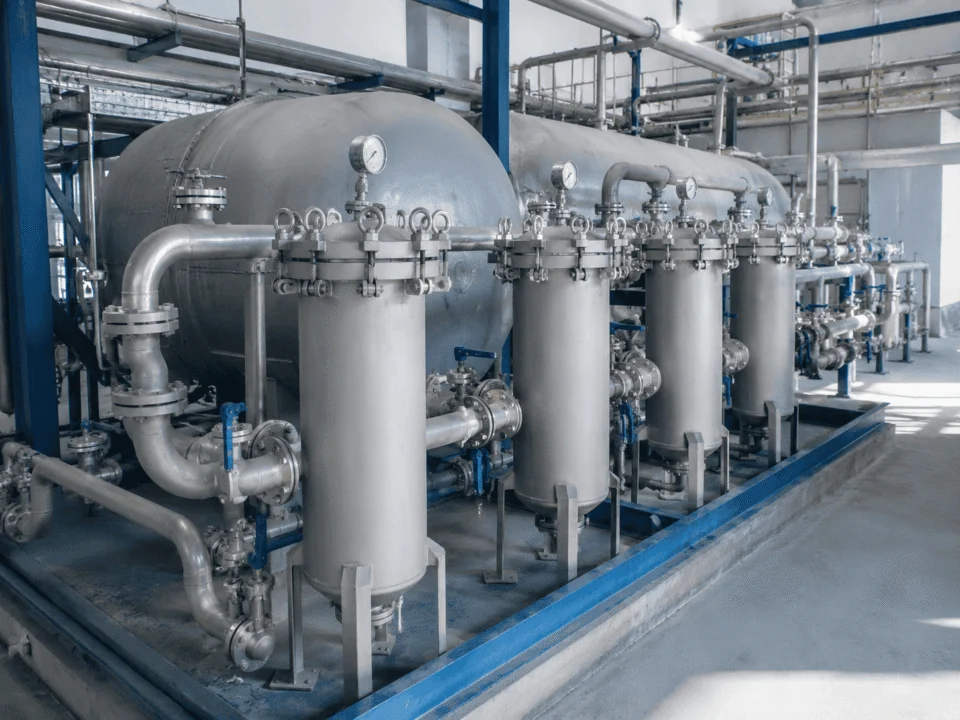

For gas-liquid, liquid-liquid and solids separation, filtration, entrainment removal and similar process duties.
Process Skids
For projects where vessels, pumps, piping, valves, instrumentation and controls must operate as one integrated package.
The product category should follow the process duty. Material, pressure class, vessel orientation and accessories are refined after the primary equipment function is established.
REFINE THE CONFIGURATION
Common Vessel Selection Decisions
After identifying the basic equipment type, the next step is deciding how that equipment should be configured.
Several decisions appear repeatedly across pressure vessel, tank and reactor projects.
Material, orientation, pressure conditions and thermal configuration should be considered together.
MATERIAL SELECTION
Stainless Steel or Carbon Steel?
There is no single material that is correct for every vessel.
Stainless Steel
Stainless steel is commonly considered where the application requires:
- corrosion resistance
- product cleanliness
- hygienic construction
- frequent washing or cleaning
- controlled surface finish
- reduced contamination risk
Different stainless steel grades can behave very differently in different process media, so material grade should still be checked against the actual chemical environment.
Explore Stainless Steel Pressure VesselsCarbon Steel
Carbon steel can be appropriate where:
- the process medium is compatible
- sanitary surfaces are not required
- corrosion can be controlled
- the operating environment allows its use
- project economics favor carbon steel construction
Protective coatings, linings or corrosion allowance may be considered depending on the service.
Explore Carbon Steel Pressure VesselsMaterial selection should be based on the complete process environment, not initial vessel cost alone.
VESSEL ORIENTATION
Vertical or Horizontal?
Orientation affects much more than appearance.
Vertical Vessels
A vertical vessel may be preferred where:
- floor space is limited
- liquid level or gravity drainage is important
- process internals favor vertical flow
- a tall liquid column is beneficial
- the installation layout supports vertical access
Horizontal Vessels
A horizontal vessel may be preferred where:
- overall height is restricted
- horizontal phase separation is required
- transport dimensions favor the arrangement
- maintenance access benefits from a lower vessel height
- process geometry requires greater horizontal length
Orientation should be selected together with support design, nozzle arrangement, maintenance access and installation constraints.
PRESSURE CONDITIONS
Positive Pressure or Vacuum?
Pressure vessels are often discussed in terms of internal pressure, but vacuum service requires a different engineering check.
Internal Pressure
Positive internal pressure tends to load the vessel wall outward.
Selection normally considers the pressure boundary, material strength, geometry, temperature and openings.
Explore High Pressure VesselsVacuum and External Pressure
Vacuum creates external pressure on the shell.
The design can become sensitive to:
- vessel diameter
- shell length
- shell thickness
- unsupported length
- geometry
- fabrication tolerances
- stiffening arrangement
A vessel designed for internal pressure is not automatically suitable for full vacuum operation.
THERMAL CONFIGURATION
Jacketed or Non-Jacketed?
A jacket becomes relevant when the process requires controlled heat transfer through the vessel wall.
Jacketed Vessels
Typical jacket duties include:
- heating a product
- cooling a batch
- maintaining temperature
- removing reaction heat
- supporting temperature-sensitive processing
Non-Jacketed Vessels
Consider non-jacketed construction when the process does not require a vessel jacket.
A non-jacketed vessel may still use an internal coil or a separate heat exchanger. Confirm how the process will meet its temperature requirements before omitting the jacket.
The choice is about the required heat-transfer arrangement, not simply whether the vessel has an extra outer wall.
Selection should consider the required heat transfer duty rather than simply adding a jacket as an accessory.
Depending on the process, the final thermal configuration may involve a conventional jacket, half-pipe jacket, dimple jacket, internal coil or another heat-transfer arrangement.
Pressure Vessel Selection Checklist
A useful quotation begins with useful process information.
Providing the following data allows the equipment configuration to be evaluated more accurately and reduces unnecessary assumptions during technical discussions.
Define the process itself before deciding the mechanical configuration.
- Process medium
- Chemical composition
- Concentration
- Solids content where applicable
- Viscosity where relevant
- Process purpose
- Batch or continuous operation
- Expected operating cycle
Include both normal operation and the most demanding credible pressure condition.
- Normal operating pressure
- Maximum operating pressure
- Required design pressure
- Vacuum conditions
- Pressure cycling requirements where applicable
Temperature should reflect the full operating envelope, not only the normal production setpoint.
- Normal operating temperature
- Maximum operating temperature
- Required design temperature
- Heating or cooling requirements
- Cleaning temperature where applicable
Capacity may be defined by volume, batch size, residence time or throughput depending on the process.
- Required working volume
- Total volume if known
- Normal liquid level
- Batch size
- Required residence time where relevant
- Process flow rate where relevant
If material has not yet been selected, provide the process medium and operating conditions first.
- Preferred material if specified
- Process medium compatibility information
- Corrosion concerns
- Product-contact requirements
- Required surface finish
- Lining or coating requirements if applicable
Not every project requires every item. Include only the configuration requirements relevant to your process.
- Vertical or horizontal orientation
- Vessel diameter or height restrictions
- Jacket
- Internal coil
- Agitator
- Baffles
- Demister
- Distributor
- Filter elements
- Manway
- Nozzles
- Drain
- Vent
- Level instrumentation
- Support type
Site constraints can influence vessel geometry, supports, transport planning and maintenance access before detailed design begins.
- Installation country
- Indoor or outdoor location
- Available floor area
- Available installation height
- Transportation limits
- Lifting restrictions
- Surrounding equipment
- Maintenance access
Documentation and inspection requirements should be identified early because they can affect engineering, fabrication and project planning.
- Applicable design code
- Inspection requirements
- Testing requirements
- Material documentation
- Welding documentation
- Drawing format
- Certification requirements
- Third-party inspection
- Required documentation package
Start with the process information you already have.
Missing details can be clarified during technical review. The important part is to separate known process requirements from assumptions that still need engineering verification.

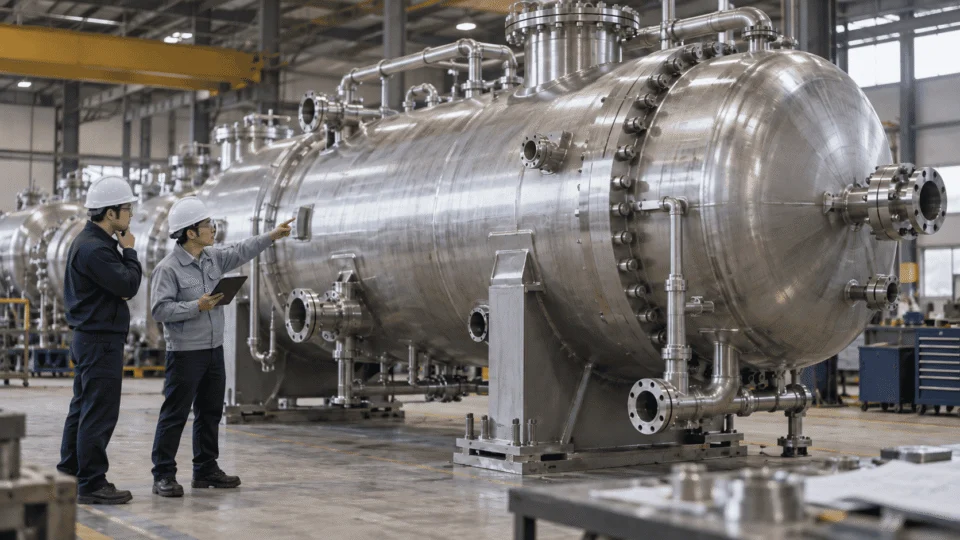

When Standard Selection Is Not Enough
Selection guides help narrow the direction. Final vessel configuration still needs to be verified against the actual process and project requirements.
A pressure vessel, reactor, storage tank or process package is rarely defined by one number. Pressure, temperature, material, geometry, nozzles, supports, internals, fabrication and inspection requirements interact with each other.
Changing one project input can affect several others, which is why a final equipment decision should move from general selection into engineering review.
Instead of asking:
“What vessel should I buy?”Start with:
“What does my process require this vessel to do?”
Review the Complete Operating and Project Envelope
Design pressure, design temperature, vacuum conditions and pressure cycling.
Chemical compatibility, corrosion, cleanliness and product-contact requirements.
Material grade, corrosion allowance, lining, coating and surface requirements.
Diameter, length, orientation, heads, wall thickness and unsupported length.
Supports, external loads, nozzle loads, lifting and installation constraints.
Connections, manways, distributors, coils, demisters, baffles and other internals.
Heating, cooling, jackets, coils, insulation and process temperature control.
Welding, testing, inspection, documentation and applicable project specifications.
Selection Inputs Do Not Work Independently
Larger Diameter
May change the structural design, wall thickness, support arrangement and transport planning.
Different Process Medium
May change the material grade, corrosion allowance, lining or product-contact requirements.
Vacuum Operation Added
May require additional external-pressure evaluation, geometry checks or stiffening strategy.
Heating or Cooling Added
May change the vessel wall, jacket, coil, nozzle arrangement and thermal control strategy.
