Custom Vertical Pressure Vessels for Process & Industrial Service
A vertical pressure vessel should be selected around the actual process duty, not simply by choosing a diameter, height, and pressure rating from a standard list.

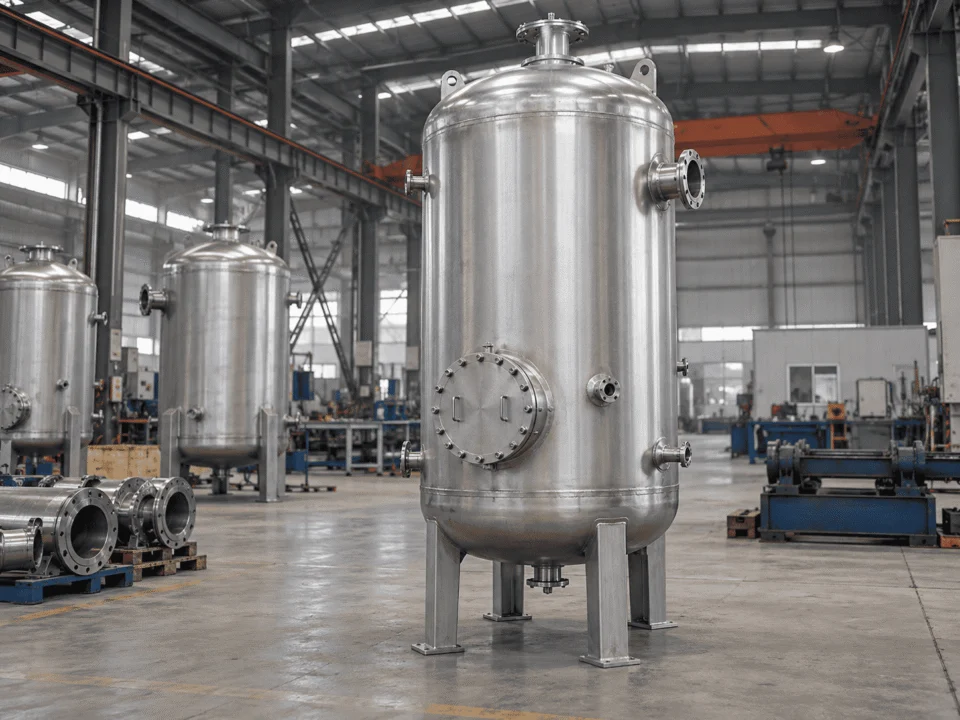

ChannelVessel manufactures vertical pressure vessels for applications where a compact footprint, vertical process arrangement, gravity-assisted drainage, liquid hold-up, gas separation, surge capacity, or internal process components make a vertical configuration more practical.
The vessel can be engineered as a simple pressure shell or as a more application-specific unit with process nozzles, manways, internal piping, demisters, distributors, support rings, heating or cooling provisions, instrumentation connections, insulation attachments, and project-specific inspection requirements.
Vertical Pressure Vessel Design Capabilities
A workable vessel design has to connect process requirements with mechanical limits, fabrication realities, inspection access, and site constraints. The design envelope is developed from the service conditions first, then translated into a vessel geometry that can be built, tested, transported, and installed reliably.
Start with the operating case, not with a vessel diameter.
Capacity alone is not enough to define a pressure vessel. Pressure, temperature, fluid behavior, liquid level, corrosion risk, vacuum exposure, cyclic service, and upset conditions can materially change the required wall thickness, geometry, materials, and inspection scope.
Build a vessel envelope that works mechanically and physically.
Once the service basis is defined, the vessel can be developed around diameter, straight-side height, overall height, working volume, wall thickness, head allowance, access clearances, and practical fabrication limits.
The vessel has to fit the plant, not just pass a calculation.
Connections, access, instrumentation, internals, supports, lifting points, adjacent piping, insulation, platforms, and maintenance clearance all need to be coordinated before fabrication starts.

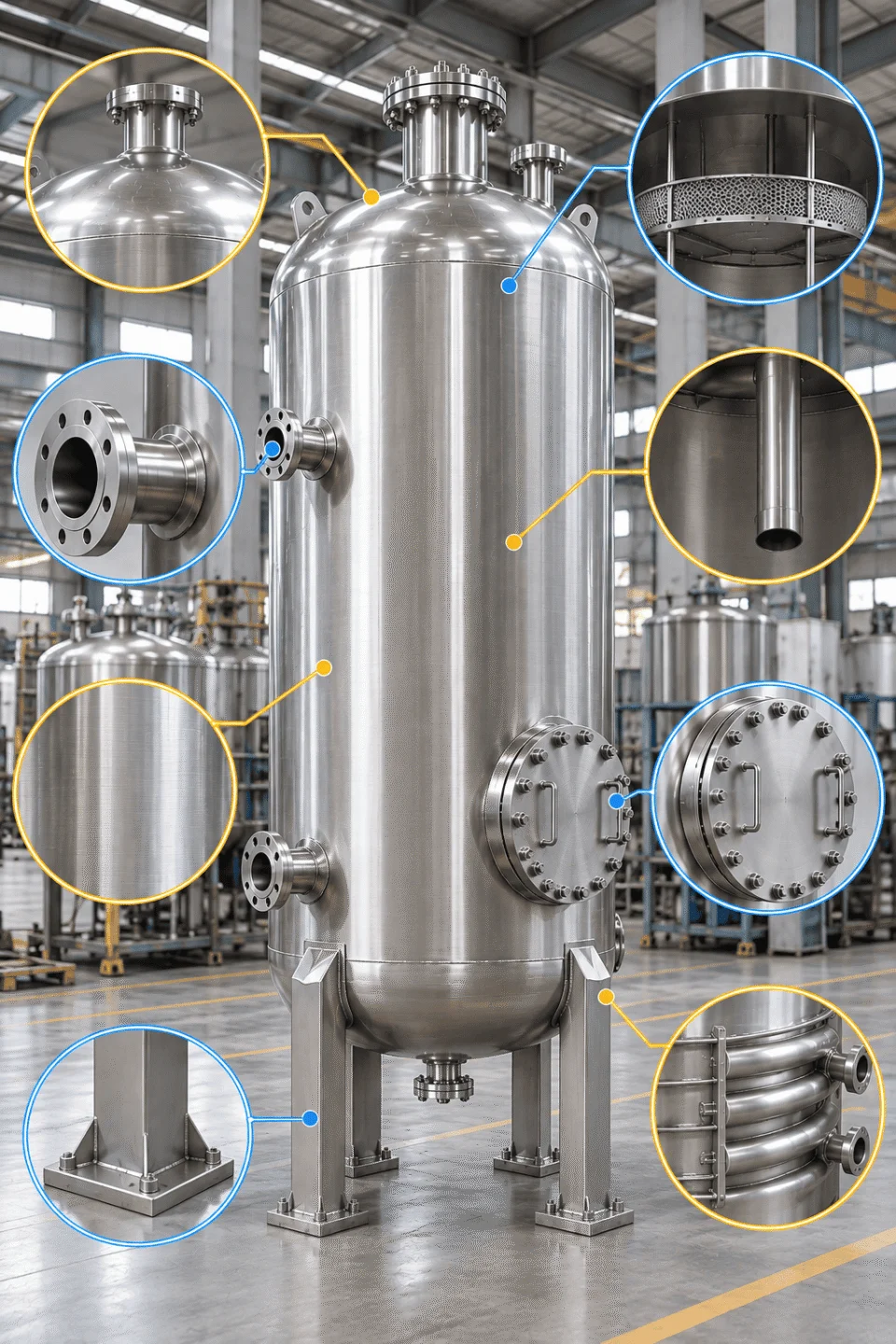

Heads, Nozzles, Internals & Thermal Options
These details are not secondary accessories. They determine how the vessel connects to the process, how operators inspect and maintain it, how fluids move inside it, and whether heating or cooling can be integrated without creating avoidable fabrication or service problems.
Head geometry affects internal volume, overall height, stress distribution, fabrication complexity, drainage, and the space available for nozzles or internals near the vessel ends.
Nozzles have to work mechanically and spatially. Their size, rating, orientation, elevation, projection, reinforcement, and local loads must fit the process piping and instrumentation layout.
Internal components can change the vessel from a simple pressure shell into a process unit. Their loads, clearances, supports, removability, and welding details should therefore be included in the engineering scope.
When process temperature has to be controlled, thermal features should be designed as part of the vessel rather than added after the mechanical layout has been fixed.
Support & Installation Engineering
The vessel support system has to carry more than operating weight. Empty, operating, hydrotest, wind, seismic, piping, platform, insulation, lifting, transport, and maintenance loads can all influence the final support arrangement.
Support selection should therefore be coordinated with the vessel geometry, site layout, foundation design, access requirements, and installation sequence before fabrication details are finalized.
Skirt Support
Common for taller or heavier vertical vessels where continuous support around the lower shell provides a direct load path into the foundation.
- Typical use
- Tall vessels, larger diameters, higher wind or seismic demand
- Key coordination
- Anchor bolts, skirt access, base ring, insulation, drain clearance
Leg Support
Suitable for many smaller and medium-size vertical vessels where open access below the shell and a simpler support arrangement are preferred.
- Typical use
- Compact vessels, process receivers, vessels requiring bottom access
- Key coordination
- Leg spacing, gussets, base plates, nozzle clearance, local shell loads
Support Lugs
Useful where the vessel is supported from surrounding structure rather than directly from a conventional base or foundation.
- Typical use
- Elevated installations, structural frames, compact process layouts
- Key coordination
- Lug elevation, shell reinforcement, structural interface, access
The support works only when the vessel and the site are engineered together.
Final support details should reflect the actual installation environment rather than being treated as a standard fabrication attachment.
Operating weight, hydrotest weight, overturning moment, shear, anchor tension, base reactions, and grout or base-plate requirements need to be available for civil and structural coordination.
Vessel height, diameter, center of gravity, attached platforms, insulation, connected piping, and local site criteria can materially change support and anchoring requirements.
Lifting lugs, trunnions, temporary bracing, transport orientation, center of gravity, shipping height, route restrictions, and site erection sequence should be reviewed before shipment.
Support geometry must leave realistic clearance for bottom nozzles, drains, instruments, insulation, bolting, manway access, internal removal, and routine inspection activities.
Support details should be frozen only after vessel loads, site criteria, foundation interfaces, lifting requirements, and maintenance clearances are coordinated with the project layout.
How We Engineer the Vessel Around Your Service
A vertical pressure vessel should not be engineered from nominal capacity alone. The design develops by translating process data, operating conditions, mechanical requirements, and project interfaces into a vessel configuration that can be fabricated and installed without unnecessary compromises.
Storage, separation, surge, receiver, flash, collection, or another defined process duty.
Working level, vapor space, freeboard, residence time, hold-up, and internal equipment are considered before setting final dimensions.
Operating, design, upset, vacuum, and test conditions across the expected service range.
Material strength, required wall thickness, corrosion allowance, joint efficiency, head geometry, and code calculations are coordinated around the governing condition.
Fluid composition, contaminants, solids, cleaning media, corrosion tendency, and product-contact requirements.
Base material, corrosion allowance, lining or cladding needs, weld consumables, finish, passivation, and cleaning requirements are reviewed together.
Nozzles, manways, instruments, dip pipes, demisters, distributors, baffles, and process hardware.
Nozzle orientation, elevations, reinforcement, internal supports, access paths, removable components, and maintenance clearances are resolved before fabrication.
Foundation, wind, seismic, transport, lifting, surrounding steelwork, platforms, insulation, and erection limits.
Support arrangement, anchor loads, lifting points, overall envelope, shipping orientation, site clearances, and project documentation are checked before release.
Process, mechanical, fabrication, inspection, transport, and installation requirements should converge into the same drawing and documentation package before fabrication progresses too far.
Materials & Corrosion Selection
Material selection should follow the actual service environment, not a default preference for carbon steel or stainless steel. Fluid chemistry, temperature, chlorides, contamination tolerance, cleaning requirements, corrosion rate, fabrication method, and expected service life all affect the final choice.
Choose the corrosion strategy before choosing the final material grade.
Fluid composition, concentration, impurities, solids, moisture, dissolved gases, and possible contaminants can change the corrosion mechanism.
Operating, cleaning, upset, steam, and thermal-cycle temperatures can affect corrosion rate, material strength, and the suitability of coatings or linings.
Some duties can use a calculated corrosion allowance, while contamination-sensitive or high-purity services may require corrosion-resistant alloys or protected surfaces.
Cleaning chemicals, washdown, passivation, product-change requirements, access, and inspection intervals should be considered as part of the material strategy.
Lower initial material cost can be offset by higher corrosion allowance, maintenance, lining replacement, downtime, contamination risk, or shorter service life.
Common where the process medium is compatible and corrosion can be controlled through allowance, coating, lining, or operating conditions.
Review corrosion rate, contamination tolerance, internal coating requirements, low-temperature properties, and external corrosion protection.
Suitable for many clean, mildly corrosive, food, water, utility, and process applications where higher corrosion resistance than carbon steel is needed.
Review chlorides, cleaning chemistry, temperature, crevice conditions, and whether product-contact finish or passivation is required.
Often selected where molybdenum-bearing stainless steel provides better resistance in more demanding process, chloride, or cleaning environments.
Chloride concentration, temperature, stagnant zones, crevices, weld condition, surface finish, and stress-corrosion risk still need to be checked.
Considered where higher mechanical strength and improved resistance to certain chloride-containing environments can reduce thickness or improve service performance.
Welding procedure, heat input, phase balance, forming, inspection, and fabrication control become more important than with conventional austenitic stainless steels.
Used where conventional stainless steels are not suitable for the chemical environment, temperature, or corrosion mechanism.
Alloy selection should be tied closely to the actual chemistry, welding requirements, availability, fabrication route, inspection scope, and project cost.
Additional base-metal thickness is provided where predictable material loss is acceptable over the intended service life.
A corrosion-resistant barrier can protect the pressure-retaining base material when full solid-alloy construction is unnecessary or uneconomical.
The pressure-retaining shell itself is fabricated from the selected corrosion-resistant material where service severity or contamination control requires it.
Codes, Fabrication & Quality Control
Pressure-vessel quality depends on more than the final pressure test. The applicable design basis, material traceability, welding controls, inspection scope, dimensional checks, testing, and release documentation should be defined before fabrication progresses.
Each stage should close the critical issues that would become difficult or expensive to correct later.
Confirm the governing design code, project specification, design pressure and temperature, corrosion allowance, load cases, joint assumptions, nozzle schedule, support concept, and required inspection scope before fabrication drawings are released.
Verify material grade, thickness, heat or lot identification, certificates, traceability markings, substitution controls, and any project-specific impact, corrosion, or supplementary requirements before material enters production.
Control joint preparation, fit-up, welding procedures, welder qualification, consumables, heat input, interpass condition, repair records, and the required visual, surface, ultrasonic, radiographic, or other examination scope.
Complete pressure testing, dimensional inspection, nozzle orientation checks, support and attachment verification, surface treatment, cleaning, final visual inspection, nameplate or marking requirements, and release documentation before shipment.
Documentation & Manufacturing Dossier
A pressure vessel is not fully delivered when fabrication is complete. The documentation package should provide traceable evidence of the agreed design basis, materials, welding, examination, testing, inspection, and final release status.
It should let the buyer verify what was designed, built, inspected, and released.
The exact content depends on the applicable code, project specification, inspection plan, and contractual scope. The required records should therefore be agreed before fabrication begins rather than assembled only at the end.
Missing or late-defined documentation requirements can create rework even when the physical vessel itself is already complete.
Records that define the approved engineering basis and the vessel configuration released for fabrication.
Evidence that pressure-retaining and specified project materials can be traced back to the agreed grade, thickness, and certification scope.
Records supporting the welding process, welder qualification, repair control, and the examination methods required by the project.
Evidence that the vessel was inspected and tested against the agreed fabrication and acceptance requirements before release.
Documents that confirm the final configuration, release status, marking, and handover condition of the completed vessel.
Vertical Pressure Vessels Across Process Industries
Vertical pressure vessels are used wherever process duty, plant footprint, liquid hold-up, separation, storage under pressure, surge capacity, or internal process hardware makes a vertical arrangement practical. The final configuration should still be engineered around the specific medium, operating conditions, code requirements, and site constraints of each industry.
Chemical & Petrochemical
Corrosive and process-intensive serviceUsed for process receivers, separators, surge vessels, flash vessels, intermediate hold-up, feed service, and other duties where pressure, temperature, corrosion, internals, and nozzle layout must be coordinated together.
Oil & Gas
Separation, collection and pressure serviceVertical vessels can be applied to gas-liquid separation, knockout, collection, buffer, scrubber, and receiver duties where compact footprint and internal separation hardware are important.
Food & Beverage
Cleanability and product-contact controlPressure-rated vertical vessels may be configured for hygienic product handling, buffer service, utility duty, process hold-up, and pressure-supported operations where material finish, drainability, cleaning, and contamination control matter.
Pharmaceutical
Controlled materials and documentationApplications may require stainless or higher-alloy construction, controlled surface finish, cleaning access, traceable documentation, carefully coordinated instrumentation, and tighter control of fabrication details.
Water Treatment
Utility, filtration and treatment serviceVertical pressure vessels can support filtration, treatment, air or gas service, chemical dosing systems, process water, and other utility duties where corrosion resistance and long-term maintainability are important.
New Energy
Corrosion, sealing and clean process controlVertical pressure vessels can support battery materials, solvent handling, reaction, storage, separation, and thermal-process duties where material compatibility, sealing, cleanliness, and project-specific process conditions affect the design.
The same vertical vessel geometry can require very different materials, internal details, surface treatment, inspection scope, documentation, and maintenance access depending on the process and operating environment.
Vertical vs Horizontal Pressure Vessels
Vessel orientation should follow the process and site constraints rather than a fixed preference. Vertical and horizontal vessels can perform similar pressure-containing duties, but their footprint, liquid behavior, internals, supports, maintenance access, and transport envelope can be very different.
Uses less ground area and is often easier to fit into compact process layouts where vertical height is available.
Requires more horizontal plot area but keeps the overall equipment height lower.
Can support gravity-assisted drainage, bottom collection, narrow liquid-level control zones, and tall liquid columns.
Provides a longer liquid interface and can be useful where liquid surge volume or level control benefits from a broader horizontal geometry.
Often well suited to vertical gas-liquid flow, demisters, distributors, trays, dip pipes, internal piping, and stacked process zones.
Can provide longer disengagement distance and a wider liquid surface, which may suit specific separator or receiver duties.
Manway elevations, ladders, platforms, internal access, and removal paths need careful coordination because components may be distributed vertically.
Side access can be easier at lower elevations, but long shells may require more lateral clearance for inspection and maintenance.
Skirts, legs, or support lugs may be used. Wind, seismic, overturning moment, anchor loads, and foundation reactions can become significant as height increases.
Saddle supports are common. Foundation loads are distributed along the vessel length, while local shell stresses around saddles require attention.
Tall vessels may need shipment in a horizontal orientation and field erection, with lifting strategy and site crane access considered early.
Lower installed height can simplify erection, but vessel length may create road, turning-radius, shipping, and site-access constraints.
Orientation should follow the duty, not the drawing habit.
A vertical configuration is often attractive when footprint is limited, gravity drainage matters, internals are arranged vertically, or the process benefits from a tall vessel geometry.
A horizontal configuration can be appropriate when lower installed height, extended liquid surface, longer disengagement length, or horizontal access better matches the process and site.
What Changes Cost & Lead Time?
Pressure-vessel cost and manufacturing lead time are driven by the total engineering and fabrication scope, not by vessel volume alone. Material grade, wall thickness, nozzle complexity, inspection requirements, surface treatment, documentation, and material availability can change both quotation value and production sequence.
Two vessels with similar dimensions can have very different manufacturing scope.
Material and thickness influence raw-material cost, forming, welding, handling, and procurement time.
Inspection, documentation, and approval requirements can add hold points before fabrication can move forward.
Complex internals, attachments, and surface requirements increase fabrication and finishing operations.
Carbon steel, stainless steel, duplex, nickel alloys, clad construction, and lined vessels have different material prices, sourcing routes, forming requirements, welding procedures, and fabrication controls.
Larger diameter, greater straight-side height, thicker plate, heavier heads, and higher total vessel weight affect material quantity, forming, welding time, shop handling, lifting, testing, and transport planning.
Large nozzles, reinforced openings, multiple instrument connections, manways, internal piping, demisters, distributors, support rings, platforms, ladders, clips, and other attachments add fabrication steps and coordination work.
Design-code requirements, additional NDT, third-party inspection, witness points, supplementary material testing, heat treatment, special acceptance criteria, and project-specific inspection plans can affect both cost and fabrication sequence.
Blasting, painting, polishing, pickling, passivation, controlled stainless finish, cleaning, contamination prevention, and special product-contact requirements add finishing operations and may require dedicated handling.
Non-standard plate thicknesses, special forgings, uncommon flanges, large formed heads, alloy fittings, imported components, unusual dimensions, or restricted transport envelopes can add procurement and production constraints.
Freeze the major scope drivers before comparing prices.
Quotations are easier to compare when bidders are working from the same design pressure and temperature, material grade, corrosion allowance, vessel geometry, nozzle schedule, internals, support type, NDT scope, surface treatment, documentation, and delivery requirements.
Common Vertical Pressure Vessel Purchasing Mistakes
Many pressure-vessel problems start before fabrication begins. An incomplete specification can create scope gaps, late drawing revisions, material changes, nozzle conflicts, inspection delays, or quotations that are difficult to compare on an equal basis.
Buying from capacity before defining the actual process duty.
Working level, vapor space, residence time, freeboard, internals, and process hold-up may make the usable volume very different from the nominal vessel capacity.
State the required working volume, liquid level, vapor space, process function, and any internal equipment before finalizing diameter and height.
Providing only normal operating conditions.
Wall thickness, material strength, vacuum design, head thickness, relief conditions, testing, and code calculations may all depend on the governing design case rather than the normal operating point.
Define operating pressure, design pressure, operating temperature, design temperature, vacuum, upset cases, and any cyclic or abnormal conditions.
Leaving the actual grade and corrosion basis undefined.
304L, 316L, duplex, nickel alloy, clad construction, and carbon steel with lining can have very different corrosion performance, fabrication controls, availability, and cost.
Provide fluid chemistry, concentration, temperature, chlorides, cleaning media, corrosion allowance, finish requirements, and contamination limits where relevant.
Starting fabrication before connections are coordinated.
Late nozzle changes can affect reinforcement, local stresses, internals, weld access, manway clearance, piping layout, instrument elevations, and sometimes shell-course arrangement.
Confirm size, rating, service, orientation, elevation, projection, flange standard, instrument connections, manways, vents, drains, and relief connections early.
Treating the vessel as a shop-only fabrication item.
Overall height, support type, anchor loads, lifting points, shipping orientation, route restrictions, crane access, surrounding steelwork, and maintenance clearance may force design changes later.
Share foundation limits, transport envelope, erection sequence, lifting restrictions, platform elevations, surrounding equipment, and required maintenance access.
Treating NDT and dossier requirements as final paperwork.
Additional NDT, witness points, material certification, welding records, third-party inspection, supplementary testing, and final documentation can affect the fabrication sequence long before shipment.
Agree the design code, NDT extent, hold points, testing, certificates, inspection release, as-built drawings, and final manufacturing dossier before fabrication starts.
Compare quotations only after the technical scope is aligned.
A lower price can simply reflect a smaller inspection scope, different material assumption, fewer nozzles, less documentation, excluded internals, or a different support and delivery scope. Technical alignment should come before price comparison.
What to Send for an Accurate Quote
A useful quotation needs enough technical information to define the vessel scope. The more clearly pressure, temperature, material, size, nozzles, internals, supports, inspection, and documentation are specified, the fewer assumptions have to be made during pricing.
Start with the information that defines the vessel.
State what the vessel must do and the required working, nominal, surge, or hold-up volume.
Provide operating pressure, design pressure, operating temperature, design temperature, vacuum, and relevant upset conditions.
Specify the intended material grade, corrosion allowance, lining or cladding requirement, and any product-contact or finish requirement.
Provide diameter, straight-side height, overall height, available footprint, or any dimensional limit already defined by the project.
Include service, size, rating, orientation, elevation, projection, instrument connections, drains, vents, and relief connections where available.
These details improve scope accuracy and reduce later revisions.
Demisters, distributors, dip pipes, baffles, trays, support rings, internal coils, or other internal components.
Skirt, legs, support lugs, wind or seismic criteria, anchor requirements, foundation limits, platforms, and installation constraints.
Design code, NDT extent, third-party inspection, witness points, pressure-test requirements, supplementary testing, and acceptance criteria.
Painting, blasting, pickling, passivation, polishing, cleaning, insulation attachments, or product-contact finish requirements.
Material certificates, calculations, weld records, NDT reports, inspection records, as-built drawings, and manufacturing dossier expectations.
A process datasheet, GA drawing, nozzle orientation sketch, P&ID extract, previous vessel drawing, or project specification can greatly reduce quotation assumptions.
Make sure every bidder is pricing the same technical scope.
Send the vessel data you already have. Missing details can be clarified during the engineering review.
You can start with a datasheet, drawing, equipment list, process information, or a written requirement.
Vertical Pressure Vessel FAQ
These are some of the most common technical and purchasing questions raised when specifying a custom vertical pressure vessel. Final requirements should still be confirmed against the actual process conditions, project specification, and applicable design code.
Use the FAQ to check the main engineering decisions before requesting a final quotation.
Confirm the process duty and usable volume.
Separate operating conditions from design conditions.
Define material, corrosion, nozzles, internals, and supports.
Agree inspection, testing, and documentation before fabrication.
Vessel sizing should start with the process duty, required working or hold-up volume, liquid level, vapor space, operating pressure and temperature, design conditions, fluid properties, internals, nozzle requirements, and available installation space. Nominal capacity alone is usually not enough to define the final diameter and height.
The applicable design code depends on the project, installation location, purchaser specification, regulatory requirements, and contractual scope. The code basis should be identified before calculations, material release, fabrication drawings, inspection planning, and documentation requirements are finalized.
Common options include carbon steel, 304 or 304L stainless steel, 316 or 316L stainless steel, duplex stainless steel, nickel alloys, and constructions using corrosion-resistant lining or cladding. Selection should be based on fluid chemistry, temperature, corrosion mechanism, contamination tolerance, cleaning requirements, fabrication method, and expected service life.
Yes. Nozzle size and orientation, manways, instrument connections, dip pipes, demisters, distributors, baffles, support rings, internal piping, jackets, half-pipe coils, internal coils, insulation attachments, and other process details can be coordinated around the service requirements and fabrication constraints.
A vertical arrangement can be attractive when plot space is limited, gravity-assisted drainage is useful, a tall liquid column is required, internals are arranged vertically, or the process benefits from a vertical gas-liquid flow path. Horizontal vessels may be more suitable where lower installed height, extended liquid surface, or longer disengagement length is more important.
The inspection scope can include material verification, dimensional inspection, visual examination, surface examination, ultrasonic or radiographic examination, pressure testing, third-party inspection, witness or hold points, and project-specific acceptance requirements. The exact scope should be defined before fabrication because it can affect welding, access, scheduling, and documentation.
Depending on the agreed project scope, the manufacturing dossier can include approved and as-built drawings, calculations, material certificates, material traceability records, welding documentation, NDT reports, pressure-test records, dimensional inspection results, surface-treatment records, final inspection release, and other specified manufacturing records.
Major drivers include material grade and availability, vessel diameter and wall thickness, head forming, nozzle quantity and size, internals, attachments, welding complexity, NDT and inspection scope, surface treatment, special documentation, purchased components, transport restrictions, and project approval requirements.
