Jacketed Pressure Vessels for Heating, Cooling & Temperature Control

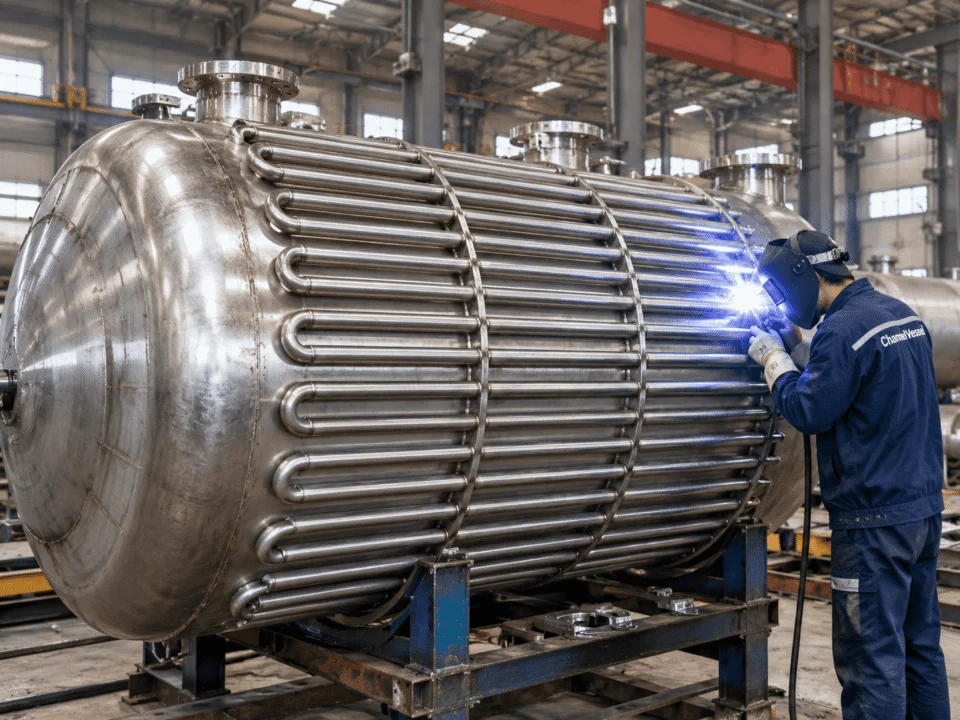

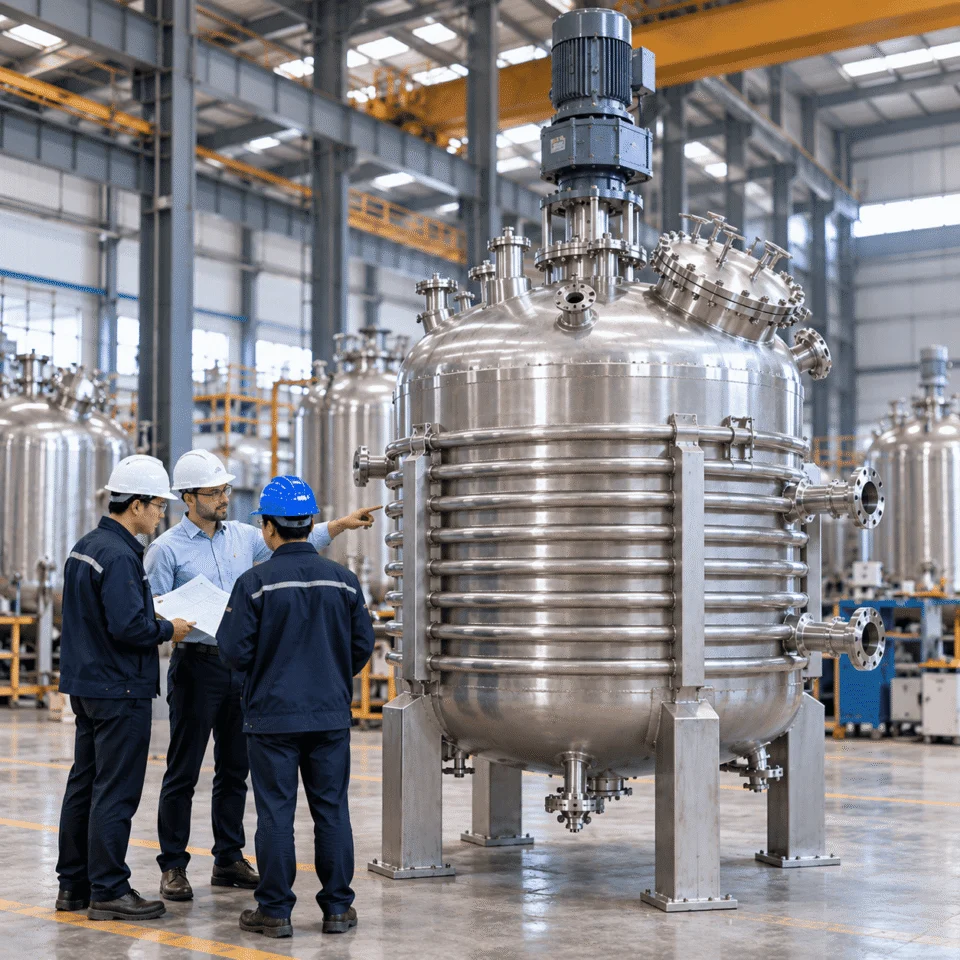

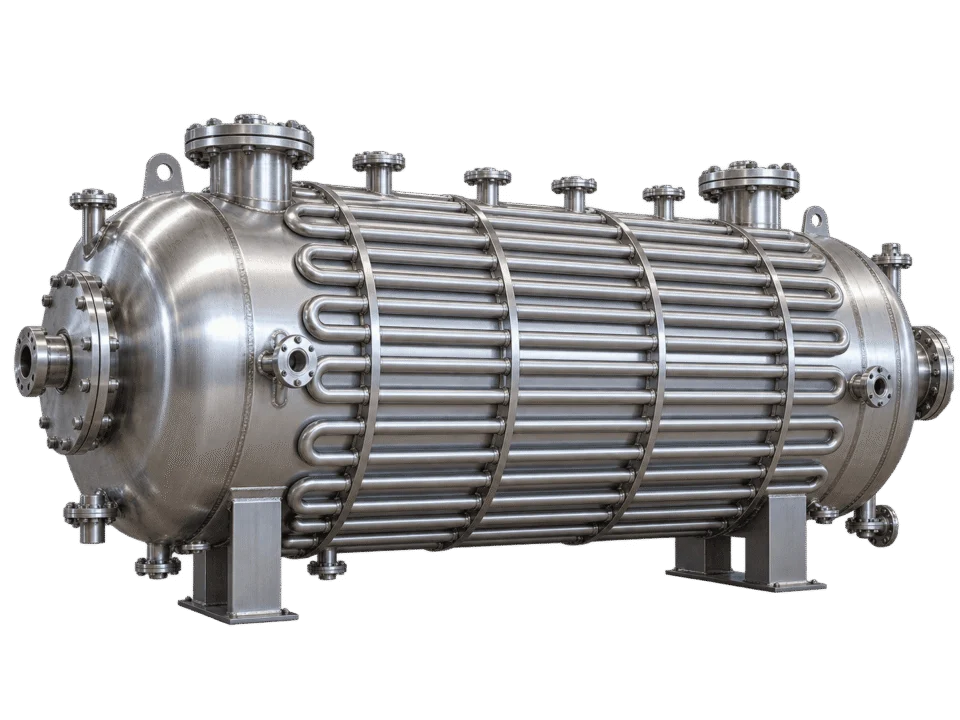

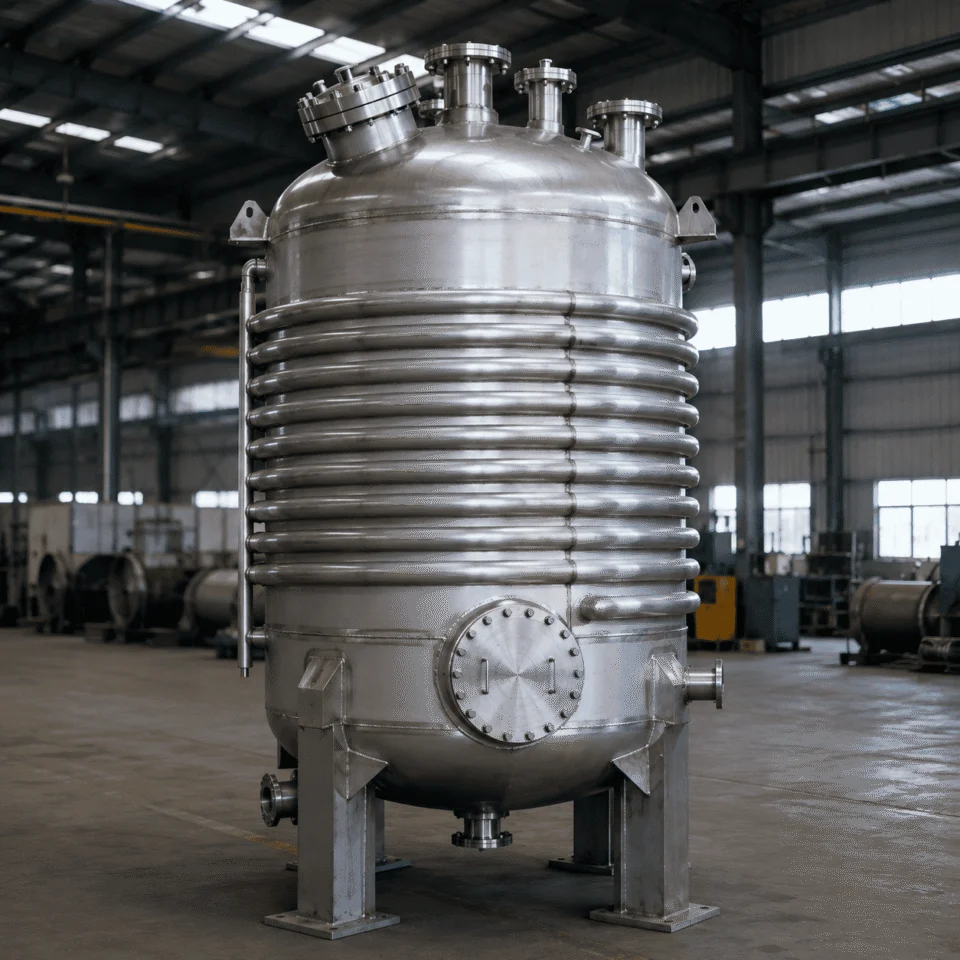

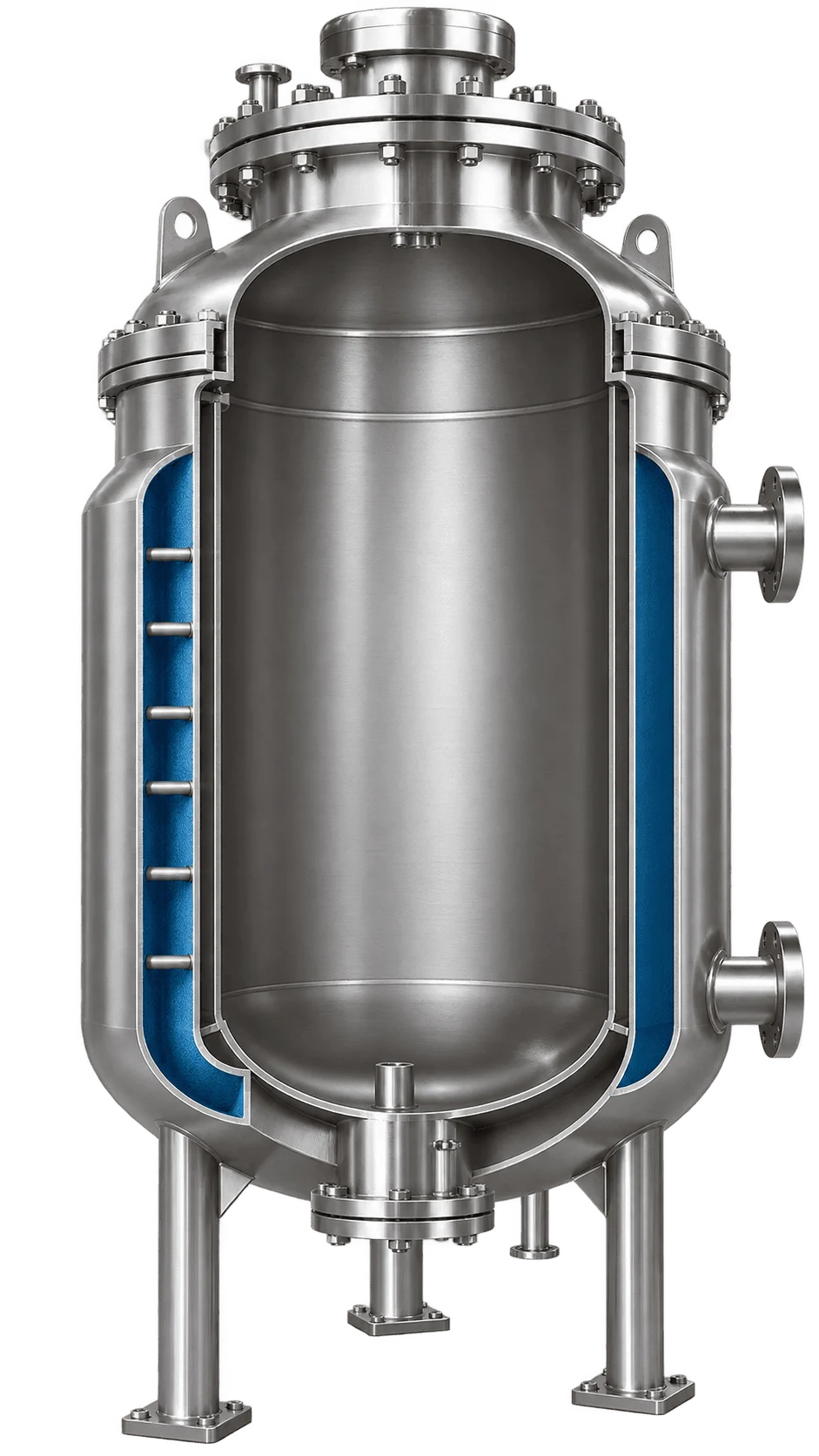

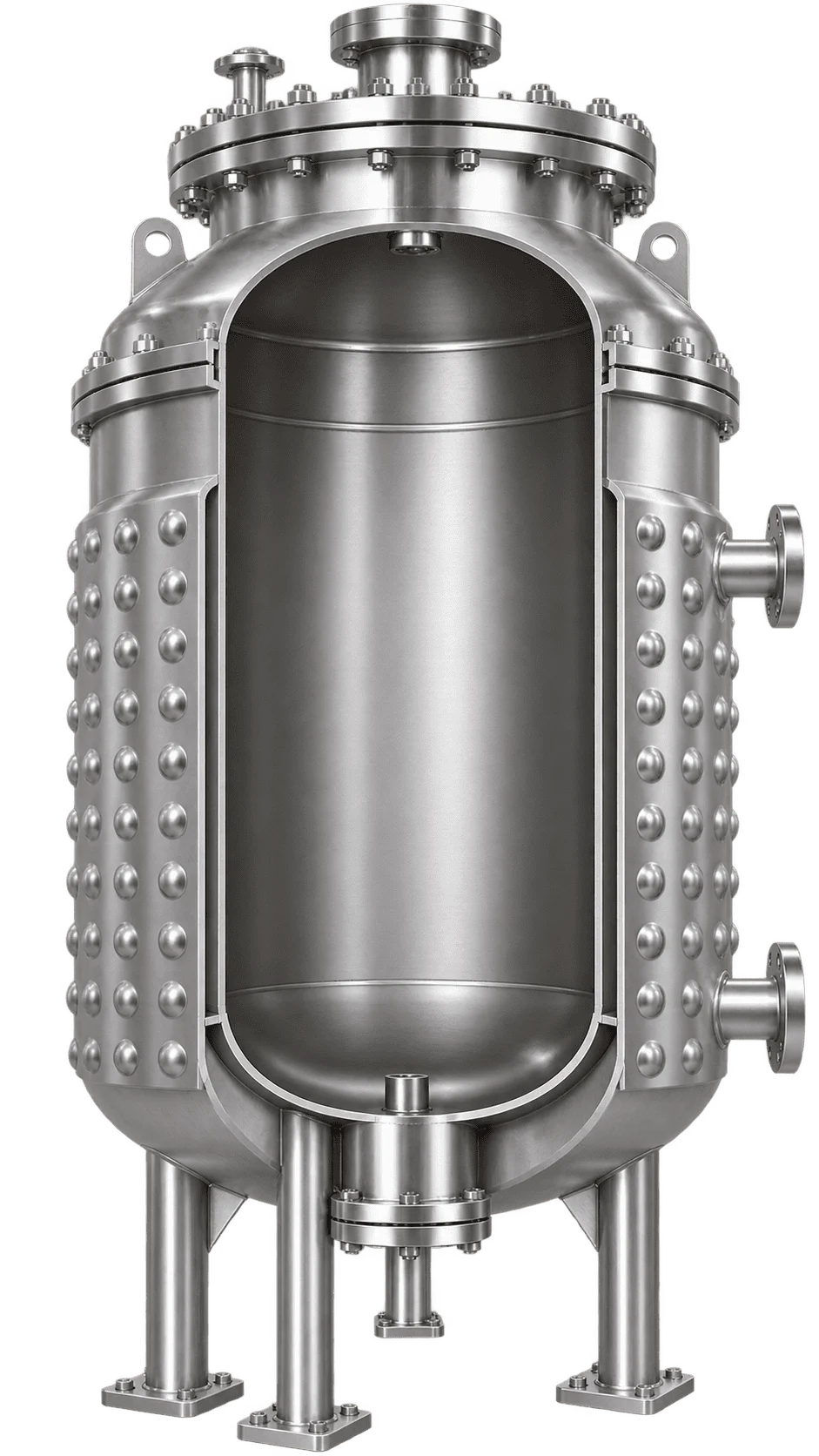

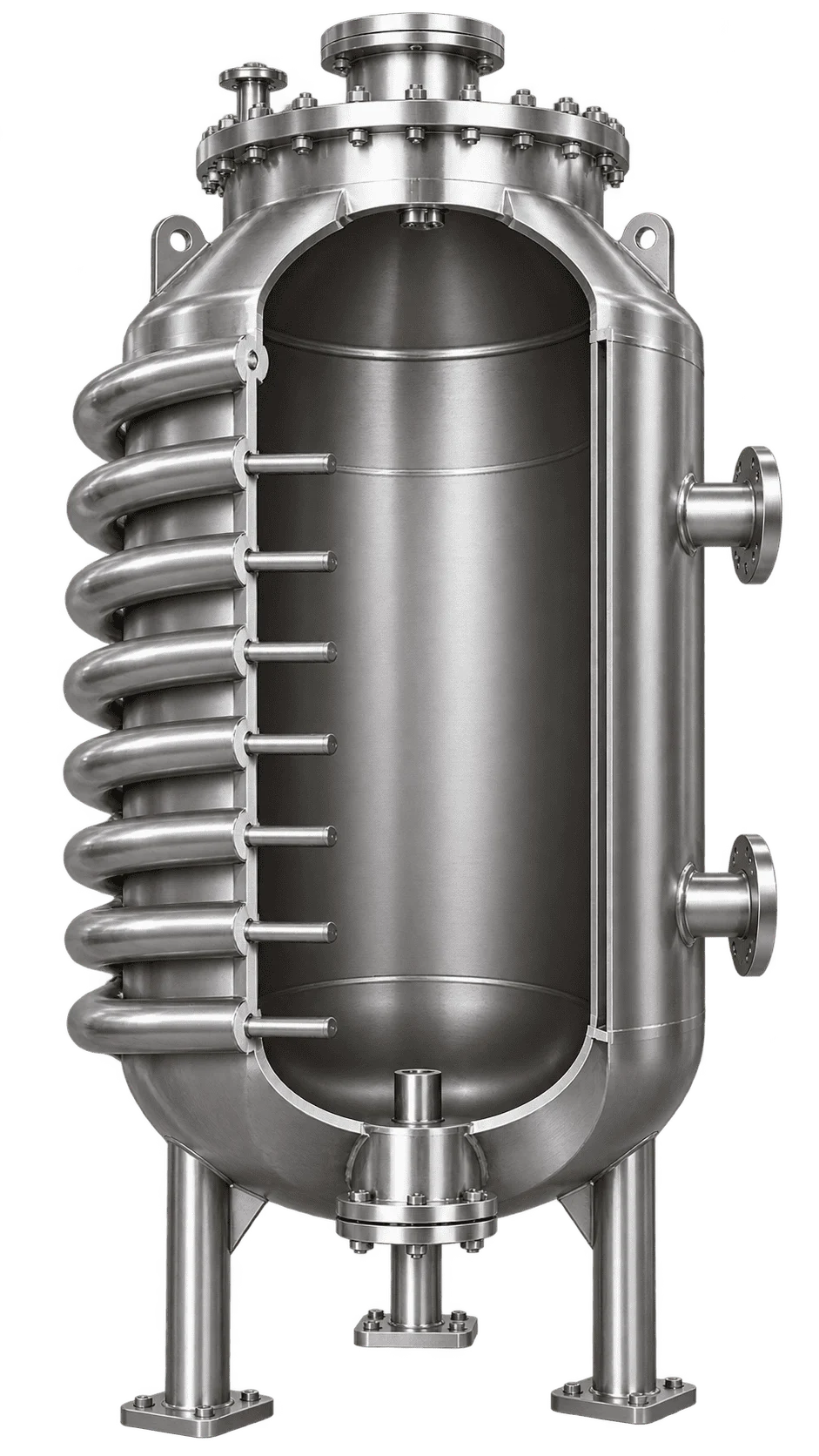

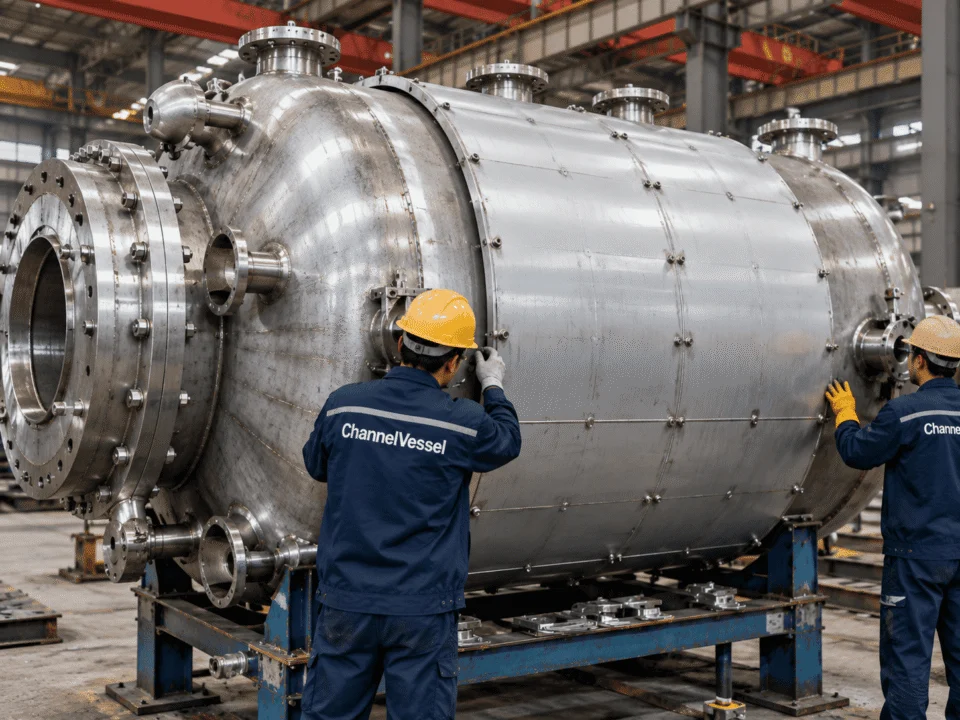

A full jacket is commonly used for general heating and cooling duties, while a half-pipe coil jacket is often preferred when the jacket side requires higher pressure or more demanding industrial service. Dimple jackets are useful where a compact external profile and efficient heat-transfer area are important. Final selection should consider vessel size, process medium, jacket pressure, utility temperature, required thermal duty and fabrication requirements.

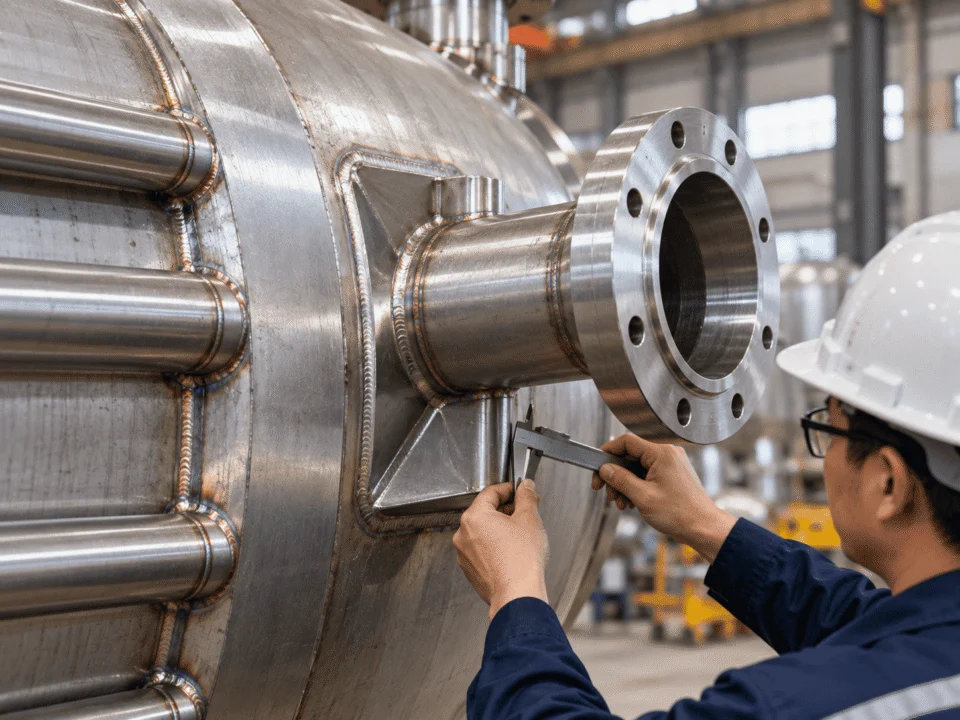

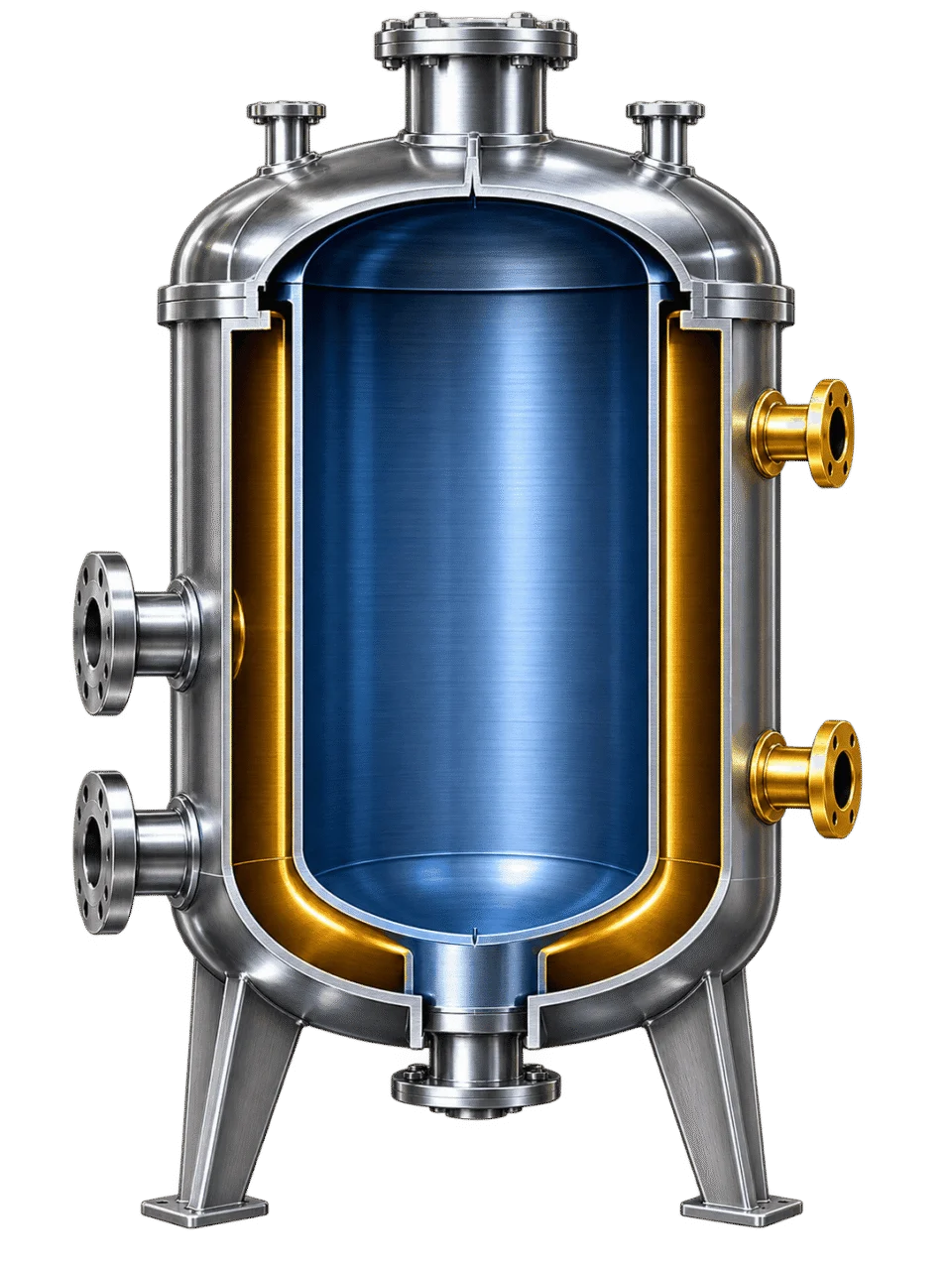

Yes. The internal process vessel and the external jacket are separate pressure boundaries, so their working and design pressures can be different. Each side is evaluated according to its own pressure, temperature, material and service conditions. Wall thickness, reinforcement, nozzle details, jacket attachment and testing requirements are then reviewed as part of the complete vessel system rather than assuming both sides operate at the same pressure.

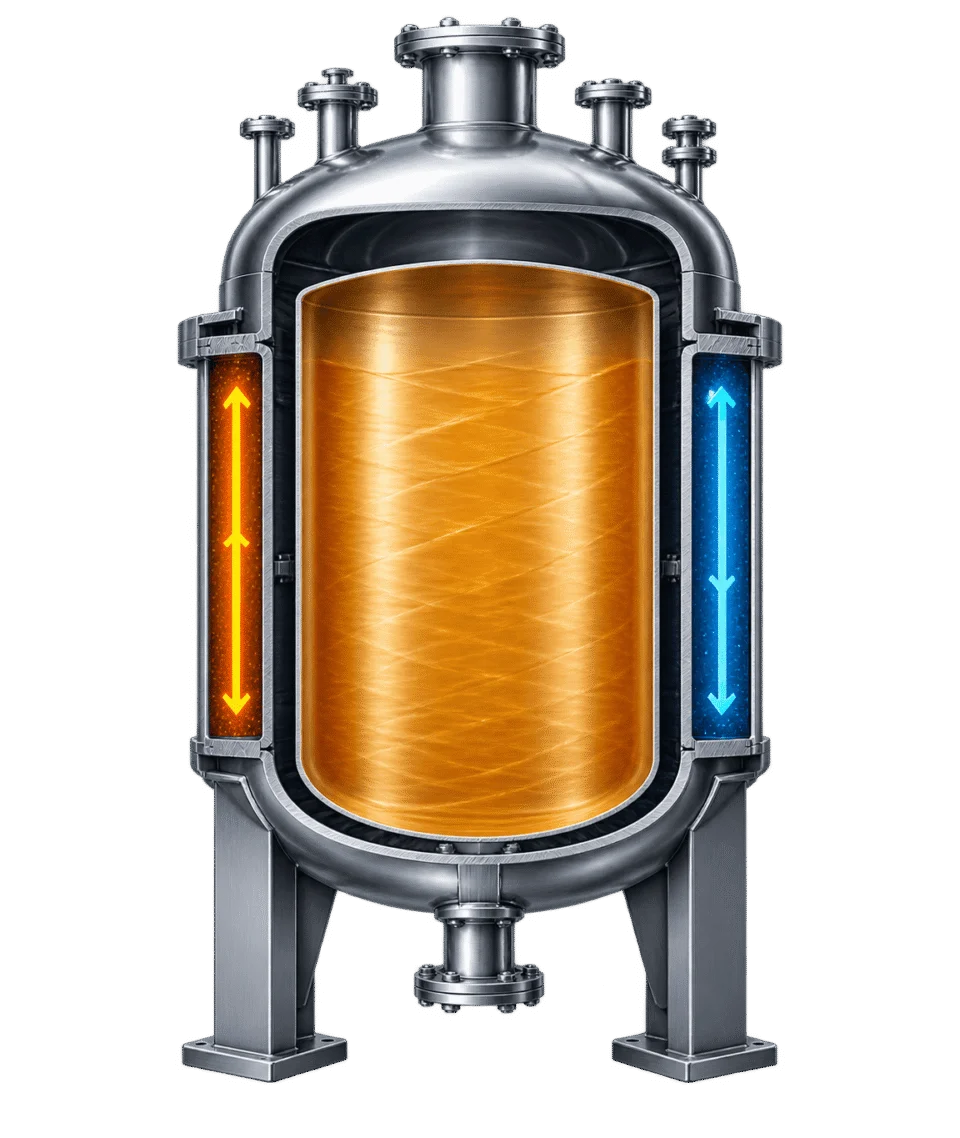

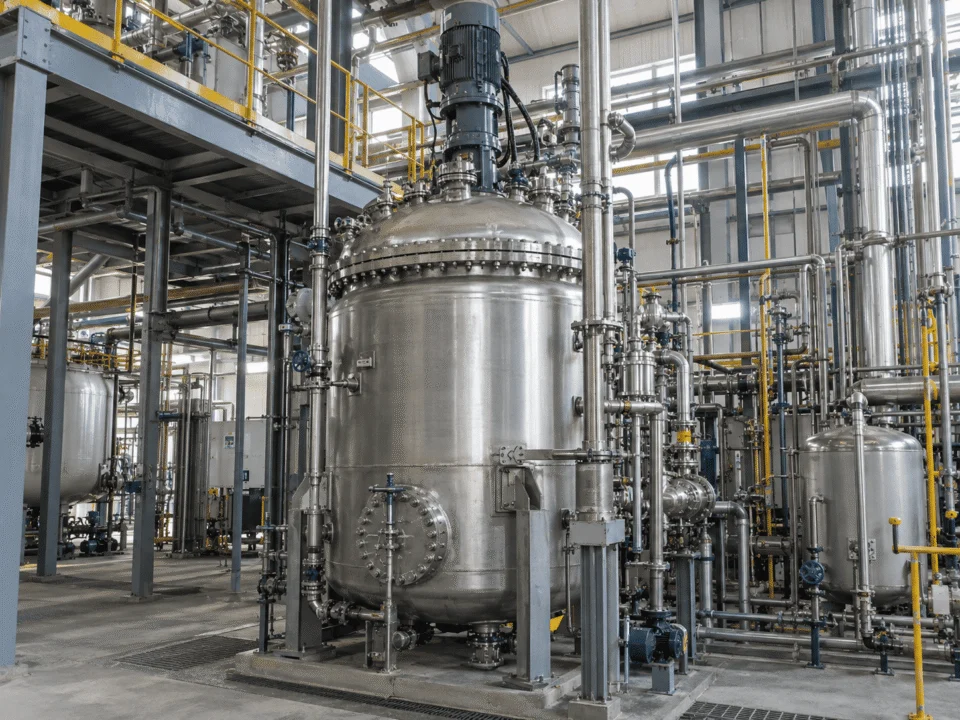

Common jacket utilities include steam, hot water, cooling water, thermal oil, glycol solutions and other project-specified fluids. The correct utility depends on the required temperature range, heating or cooling duty, jacket pressure, material compatibility and the utilities available at your plant. The jacket material, nozzle arrangement and circulation path should also be checked against the selected medium and its operating conditions.

Not necessarily. If the required heat duty is not known, you can provide the batch volume, starting temperature, target temperature, required heating or cooling time, product properties and available utility temperature. These inputs allow our engineers to evaluate the thermal requirement and recommend an appropriate jacket configuration. If some data is still unavailable, send what you currently have and the missing inputs can be identified during engineering review.

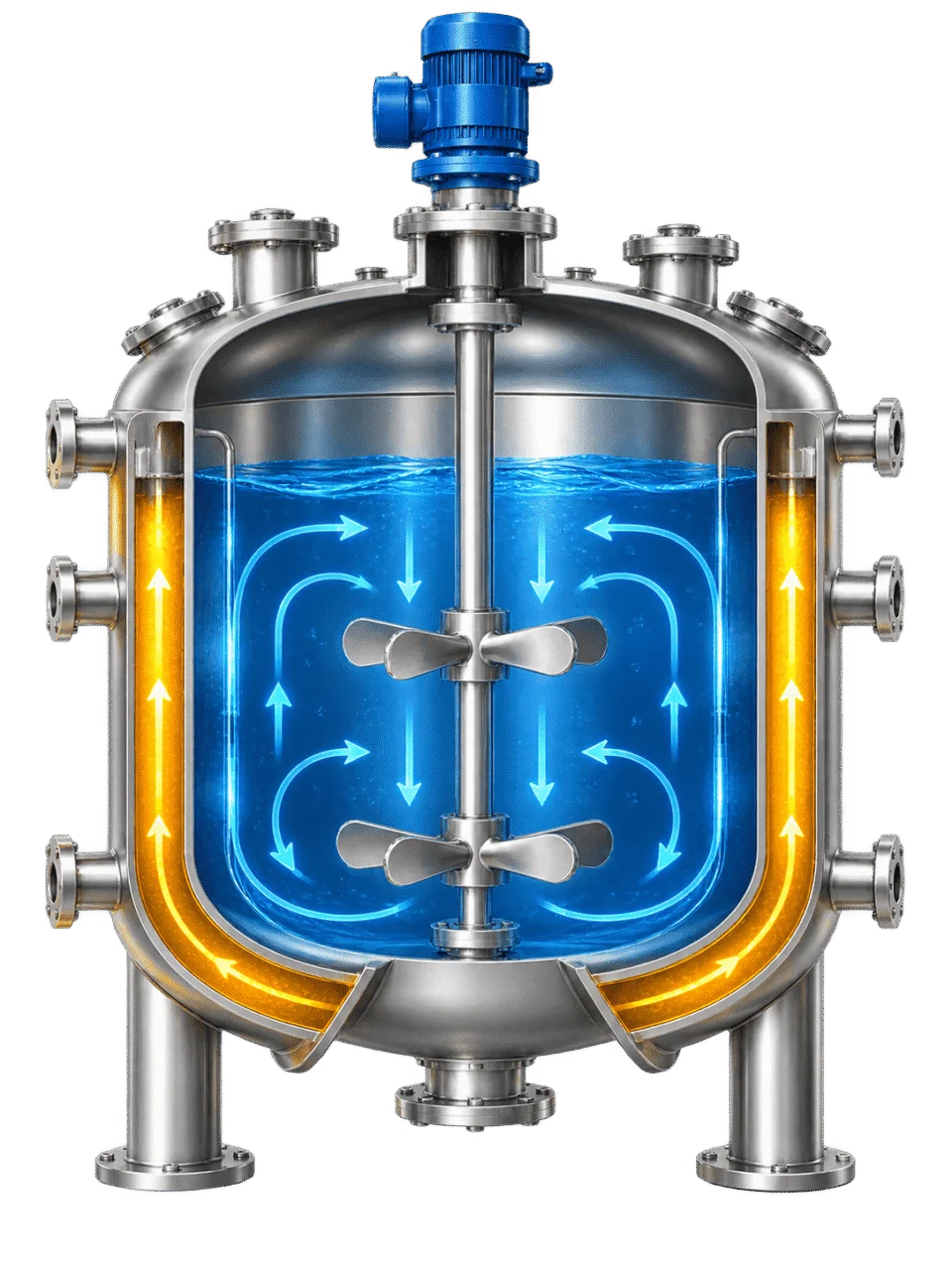

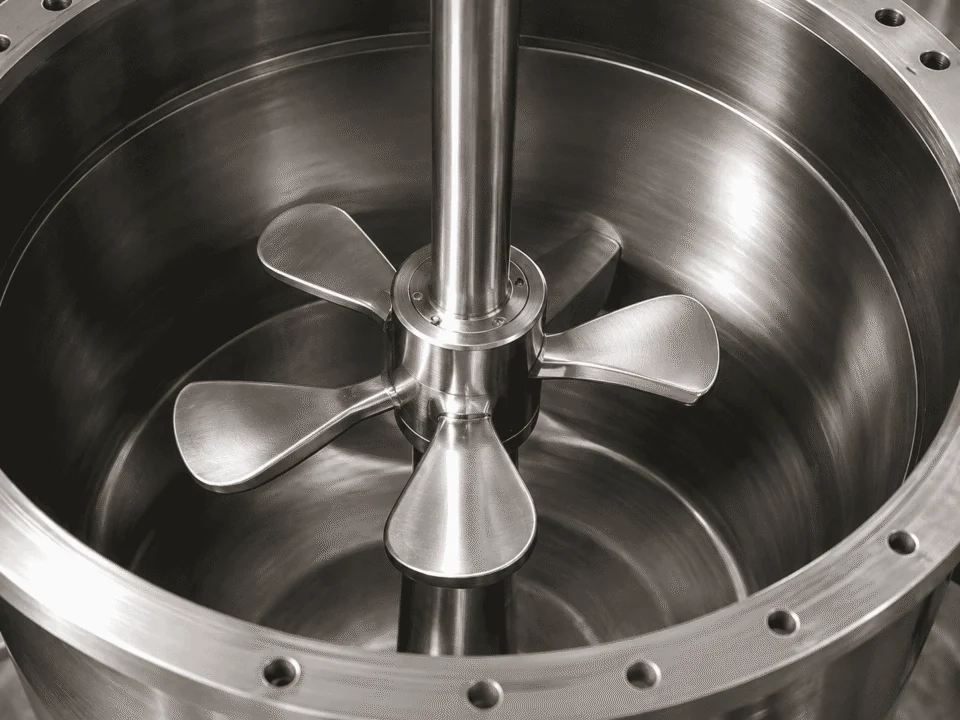

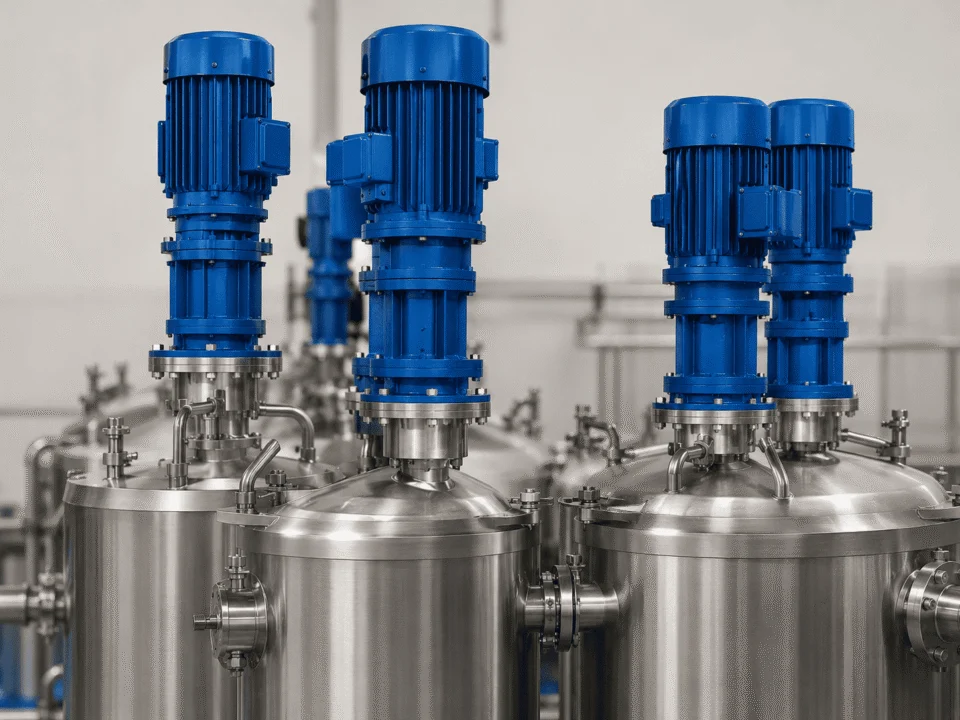

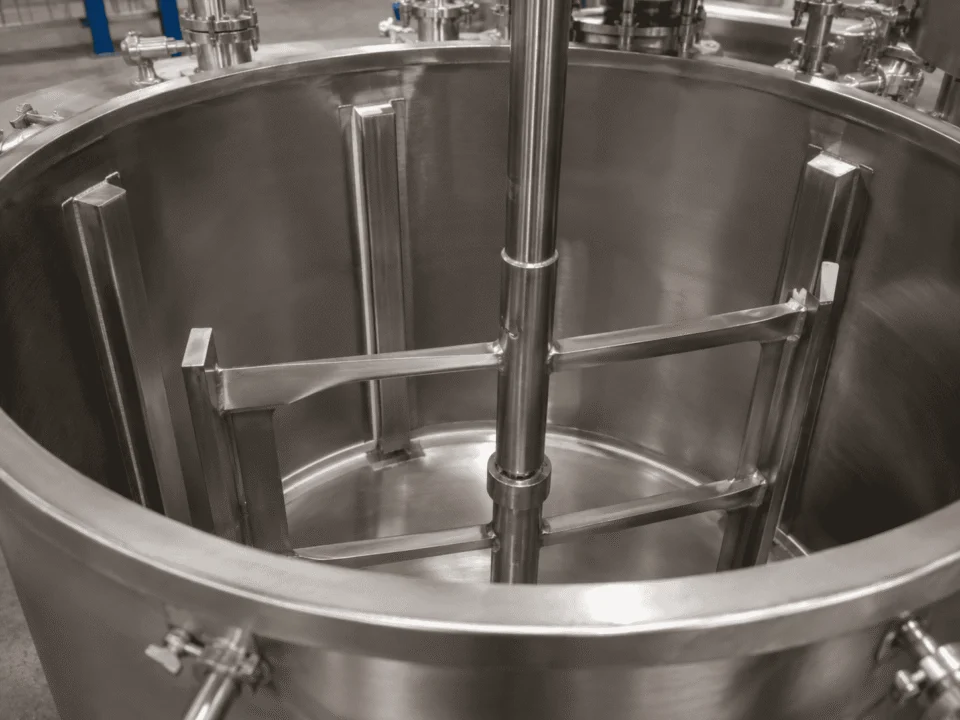

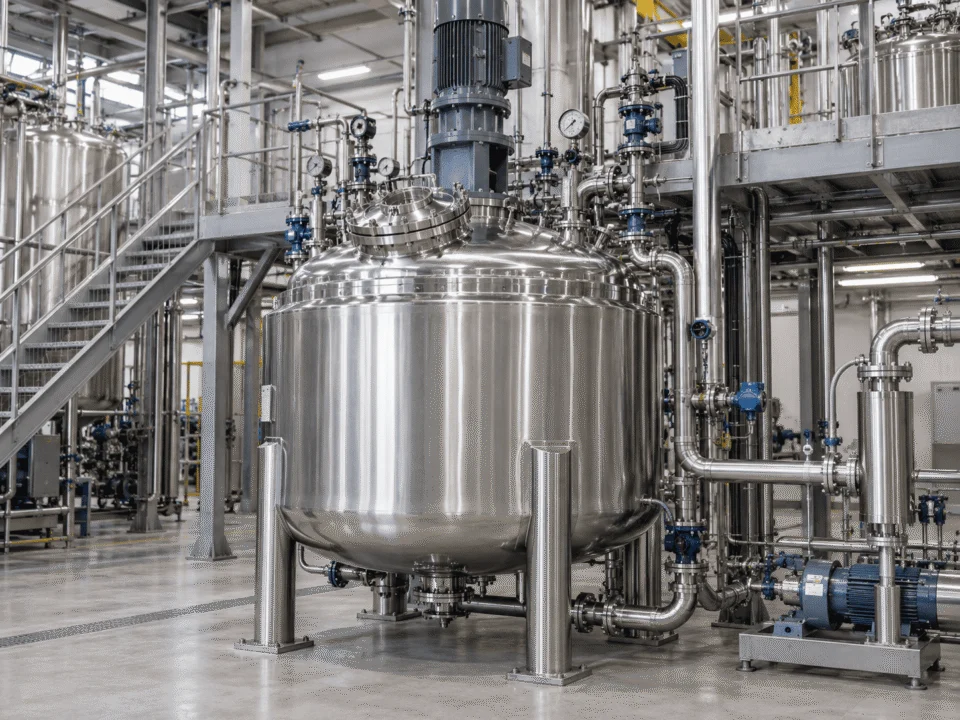

Yes. Agitation can be integrated with the vessel when required, including the agitator, impeller, gearbox or motor, shaft sealing arrangement, baffles and other internals. Selection depends on viscosity, batch volume, mixing objective, vessel geometry and heat-transfer requirements. For higher-viscosity products, agitation becomes especially important because circulation near the vessel wall can strongly influence heating or cooling uniformity and overall process performance.

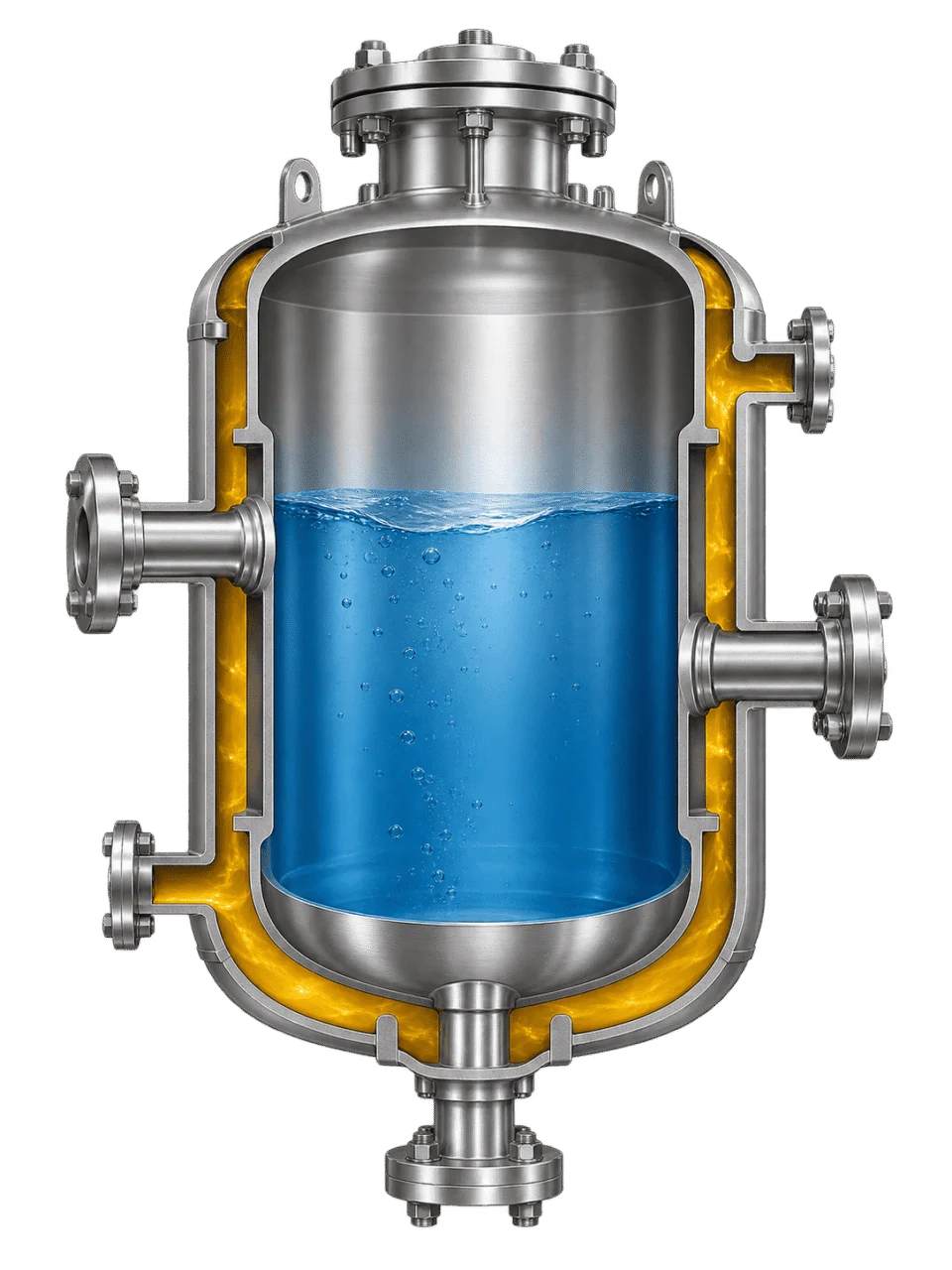

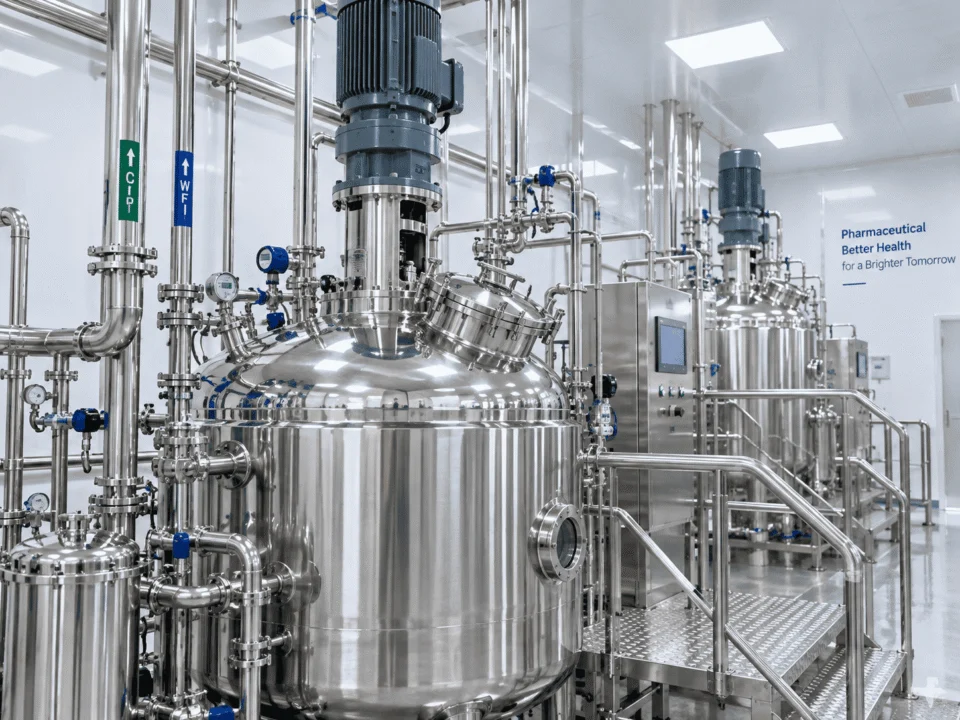

Yes. The process-contact vessel and jacket can use different materials when the service conditions justify it. For example, the product-contact side may require SS316L for corrosion resistance or cleanliness, while the jacket material can be selected according to the heating or cooling medium. Final material selection should consider both process and utility fluids, corrosion, temperature, cleanliness, applicable code requirements and fabrication compatibility.

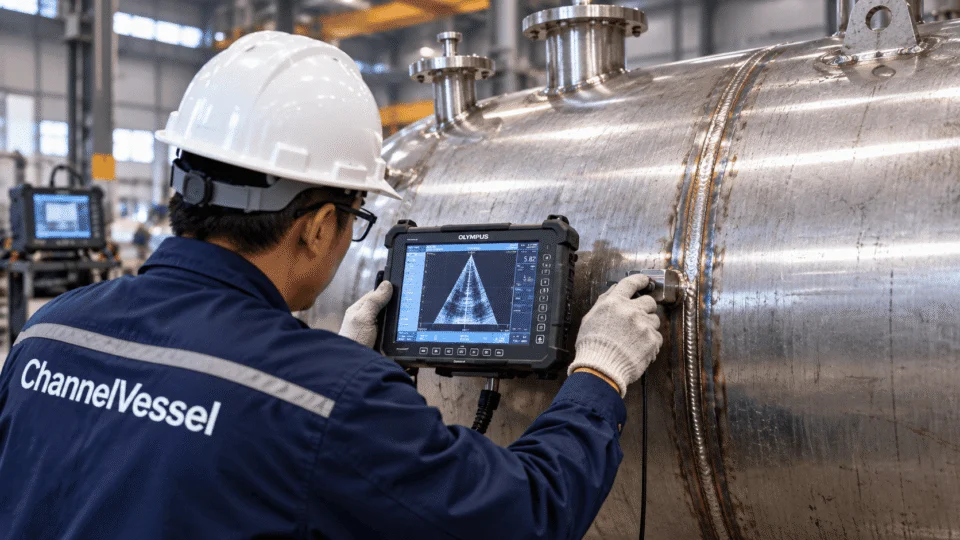

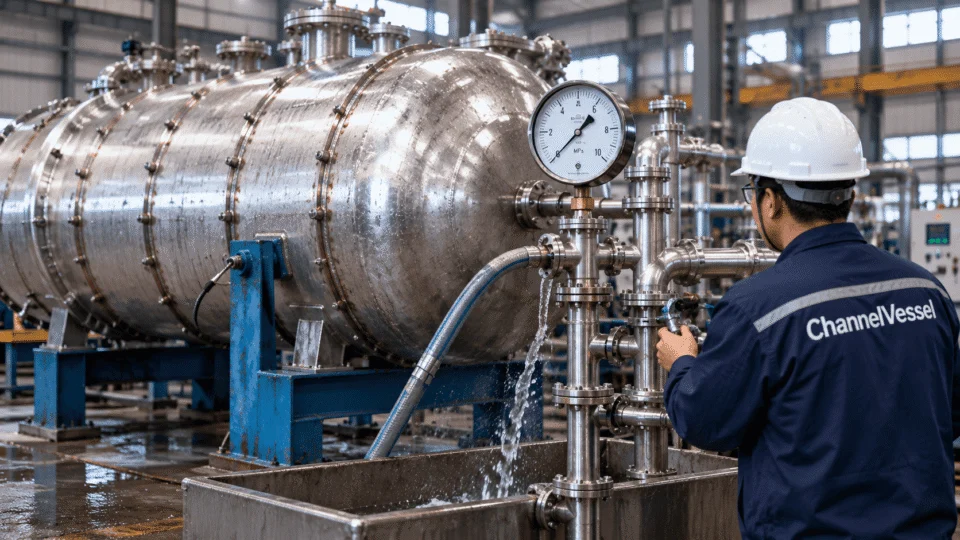

Yes. ASME Section VIII Division 1 requirements can be applied when specified for the project, subject to the agreed design basis, scope and certification requirements. Welding qualifications, material documentation, inspection, NDT, pressure testing and final records are controlled according to the applicable code and project specifications. Other project-specific standards or customer requirements can also be reviewed during the engineering stage.

The most useful information includes the process medium, required volume, process-side pressure and temperature, jacket medium, jacket pressure and temperature if known, material requirements, agitation needs and nozzle details. If your information is incomplete, you can send a vessel datasheet, P&ID, GA drawing or existing equipment drawing. Our engineers can review what is available and help identify the remaining project inputs.
