Industrial Filtration Equipment

Custom Filter Vessels for Industrial Process Filtration

Engineered bag, cartridge and high-flow filter vessels for industrial liquid filtration, solids removal and process protection. ChannelVessel designs each vessel around flow, viscosity, solids loading, filter media, pressure drop, operating pressure, temperature and required outlet quality.

Bag · Cartridge · High-Flow Designs
Filter Media Options from Approx. 1–800 μm
0.6–1.6 MPa Common Project Range
Carbon Steel · SS304 · SS316L

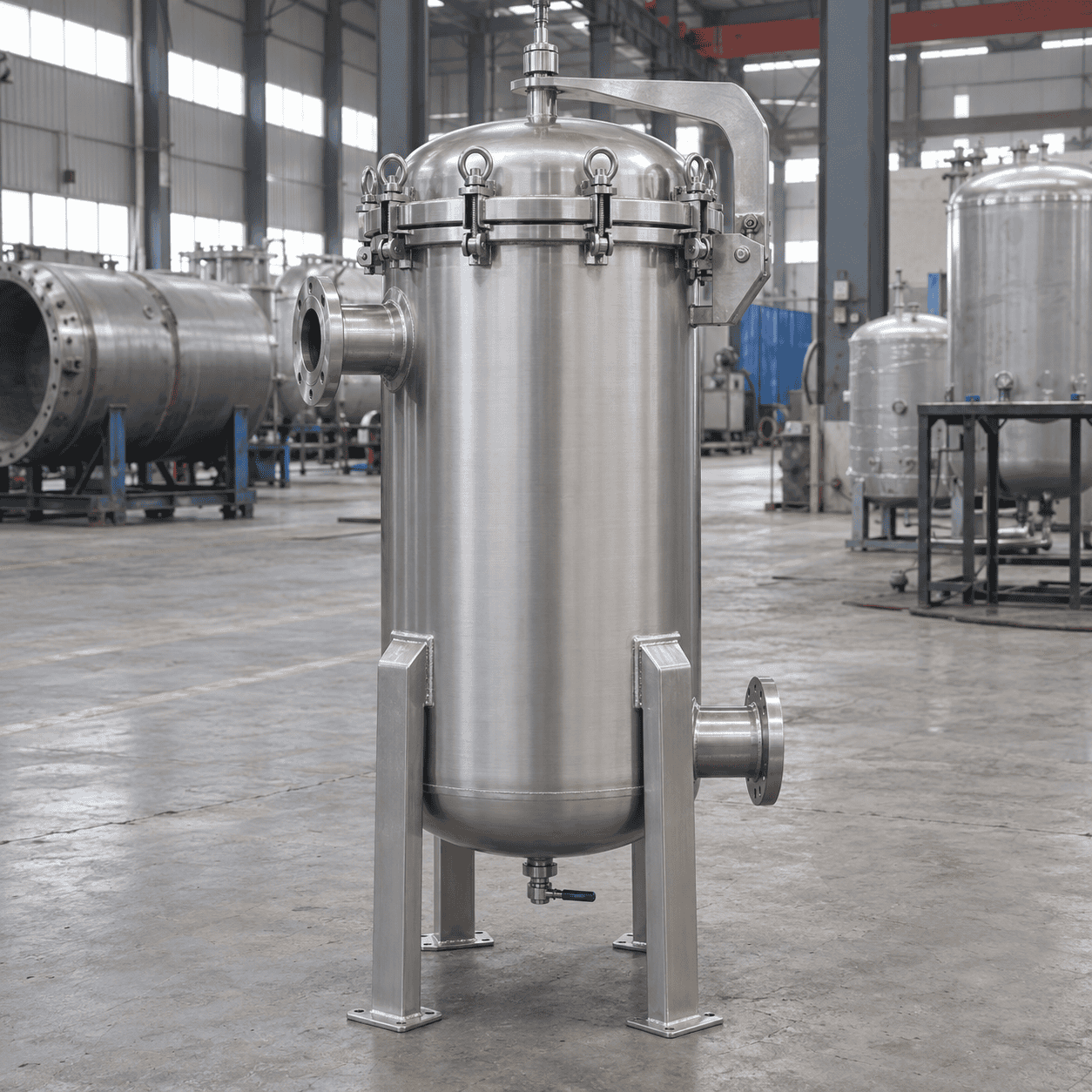

Industrial stainless steel filter vessel manufactured by ChannelVessel
Built Around the Actual Filtration Duty Higher-pressure and project-specific designs can be engineered to order.
How the System Works

A Filter Vessel Is More Than a Pressure Housing

The filter media removes contaminants. The vessel creates the controlled pressure boundary, flow path and sealing arrangement that allow the filter element to perform correctly.

Cutaway illustration of an industrial multi-cartridge filter vessel showing internal flow path and filter elements
Pressure Boundary + Flow Control + Element Support The vessel must keep the dirty and clean sides separated while allowing safe operation and maintenance.

The vessel and the filter element solve different engineering problems.

A filter vessel does not perform filtration by itself. The bag or cartridge determines what is removed, while the vessel must contain process pressure, distribute flow, support the element and prevent contaminated fluid from bypassing the filtration media.

The Filter Element

Determines particle retention, filtration efficiency, dirt-holding capacity, pressure drop and expected service life.

The Filter Vessel

Creates the pressure boundary, directs the flow path, supports the element, maintains sealing and provides access for operation and maintenance.

A complete vessel design should account for
Inlet flow distribution
Dirty-side volume
Filter element support
Clean-side isolation
Element sealing and bypass prevention
Cover and closure design
Safe venting and draining
Differential-pressure monitoring

A vessel can meet the required pressure rating and still deliver poor filtration. Internal sealing, element support and flow distribution must be engineered together with the pressure shell.

Configuration Selection

Choose the Right Filter Vessel Configuration

The correct vessel type depends on contaminant loading, required filtration level, available plant space, maintenance strategy and whether the process can stop for element replacement.

Bag Filter Vessels

Bag filter vessels are commonly selected for liquid processes with moderate to high solids loading and for coarse-to-medium filtration duties. Their relatively simple internal arrangement can provide high dirt-holding capacity and fast filter replacement.

Process Water Cooling Water Chemicals Paints & Coatings Resins Oils
Typical industrial bag formats include #1, #2, #3 and #4. Single-bag and larger multi-bag arrangements can be engineered around required flow and solids loading.

Conventional Cartridge Filter Vessels

Cartridge vessels are generally preferred where finer particle control, larger filtration area or polishing performance is required. Multiple cartridges can be arranged inside one housing to increase usable filtration area without multiplying the number of separate vessels.

Fine Process Filtration RO Pretreatment Final Polishing Chemical Filtration Utility Water Product Protection
Common cartridge lengths include 10, 20, 30 and 40 inches. Internals can be configured for DOE, SOE, 222, 226 or customer-specified cartridge interfaces.

High-Flow Cartridge Filter Vessels

High-flow cartridges use larger-diameter, high-area elements to handle greater throughput with fewer cartridges than a conventional multi-round arrangement. They can reduce the number of elements operators must handle while keeping the filtration system compact.

High-Flow Water RO Pretreatment Process Utilities Cooling Circuits Large Filtration Packages
High-flow does not mean sizing by flow alone. Element area, viscosity, solids loading, media resistance and allowable differential pressure still control the final arrangement.

Duplex Filter Vessels

Duplex filtration is selected when the process cannot be interrupted during routine element replacement. One vessel can remain in service while the second side is isolated, depressurized, drained and maintained.

Continuous Production Critical Utilities Oil & Gas Petrochemical Duty / Standby
Duplex filtration is primarily a continuity decision. Valve arrangement, switching sequence, venting, draining and safe isolation should be engineered together with the vessels.
Multi-Element Design Is a Sizing Decision, Not a Separate Filtration Principle

When one bag or cartridge cannot provide enough usable area, multiple elements can be arranged inside a larger vessel. The final element count should be based on actual viscosity, solids loading, pressure drop and required service interval.

Selection Guides →
Engineering Inputs

Start With the Filtration Duty, Not the Vessel Diameter

A reliable selection begins with the process conditions. These inputs determine the filter media, usable filtration area, number of elements, vessel configuration and pressure-boundary design.

Process Inputs That Control the Design Select an input to see why it matters.
Why This Matters
Flow Rate

Normal and maximum flow determine the hydraulic duty. Peak flow must be checked because a vessel that performs well at normal production can generate excessive differential pressure during short high-flow periods.

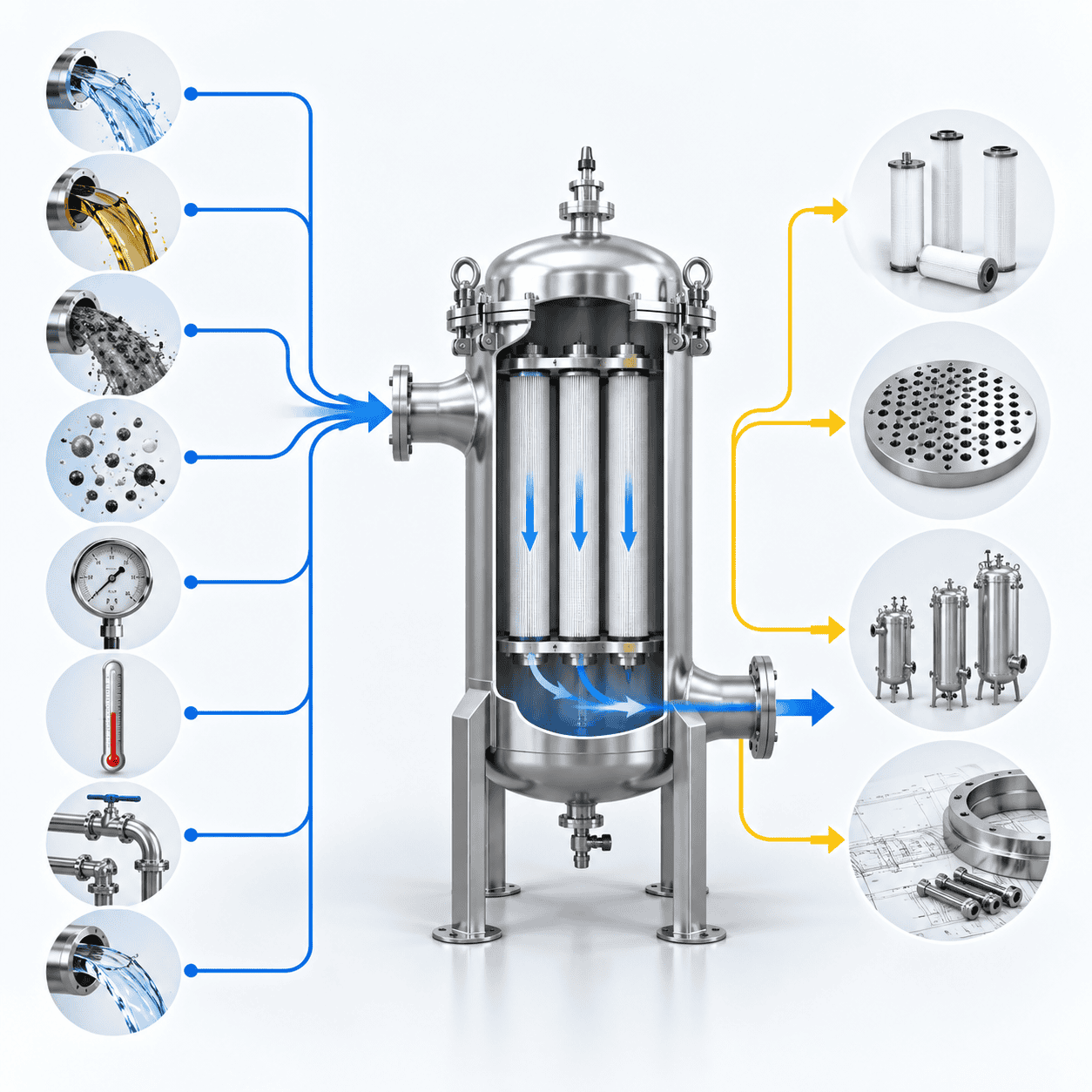

Engineering diagram showing process inputs used to determine industrial filter vessel design
Process Duty Drives the Vessel Design Flow, fluid properties, contamination and operating conditions should be reviewed before the vessel geometry is finalized.
Filter Media

Bag, cartridge, high-flow or staged media is selected from the actual contamination and outlet target.

Filtration Area

Required area follows the real hydraulic and solids-loading duty rather than a catalog maximum flow number.

Vessel Configuration

Single, multi-element, standby or duplex arrangement is chosen around capacity and continuity requirements.

Mechanical Design

Pressure, temperature, materials, closure, nozzles and code requirements define the final pressure boundary.

Sizing Logic

Flow Rate Alone Is Not Enough to Size a Filter Vessel

Filter-vessel sizing is fundamentally a filtration-area problem before it becomes a vessel-diameter problem. The element count, allowable filtration flux and expected loading cycle should be checked before the pressure shell is finalized.

Preliminary Element Count
N = Qtotal / Qelement

A first-pass estimate can divide the required process flow by the allowable flow through one selected filter element.

NPreliminary number of filter elements
QtotalTotal process flow
QelementAllowable flow through one element under the actual duty
Required Filtration Area
Arequired = Q / Jallowable

This relationship highlights the more important engineering question: how much effective filtration area is required at a realistic allowable flux.

ArequiredRequired effective filtration area
QRequired process flow
JallowableAllowable filtration flux under the actual process conditions
What Changes Jallowable? There is no single universal allowable flux for every process fluid and filter media.
Viscosity

Higher viscosity increases resistance through the filter media. A duty that is easy with water may require substantially more filter area when the process fluid is oil, resin or a concentrated chemical.

More Filtration Area Can Be More Valuable Than More Vessel Volume

A slightly larger element arrangement can reduce filtration velocity, differential pressure and changeout frequency. Sizing should therefore be evaluated against operating cost and maintenance requirements—not only initial equipment price.

Selection Guides →
Filtration Performance

Micron Rating Alone Does Not Define Filtration Performance

A “10 μm filter” description does not tell the complete performance story. Media construction, rating method, removal efficiency and sealing quality all influence what actually reaches the clean side.

Filtration Definition

Nominal Micron Rating

A nominal rating generally describes approximate particle retention around the stated size. It should not automatically be interpreted as complete removal of every particle larger than the nominal value.

Ask This Instead How much of the target-size contamination is actually retained?
Beta Ratio Is Useful Only Where the Test Method Applies

For hydraulic filter elements tested under ISO 16889 conditions, β200 corresponds to approximately 99.5% particle-removal efficiency at the stated particle size. This should not be applied universally to every bag or cartridge filter.

ISO 16889 Reference ↗

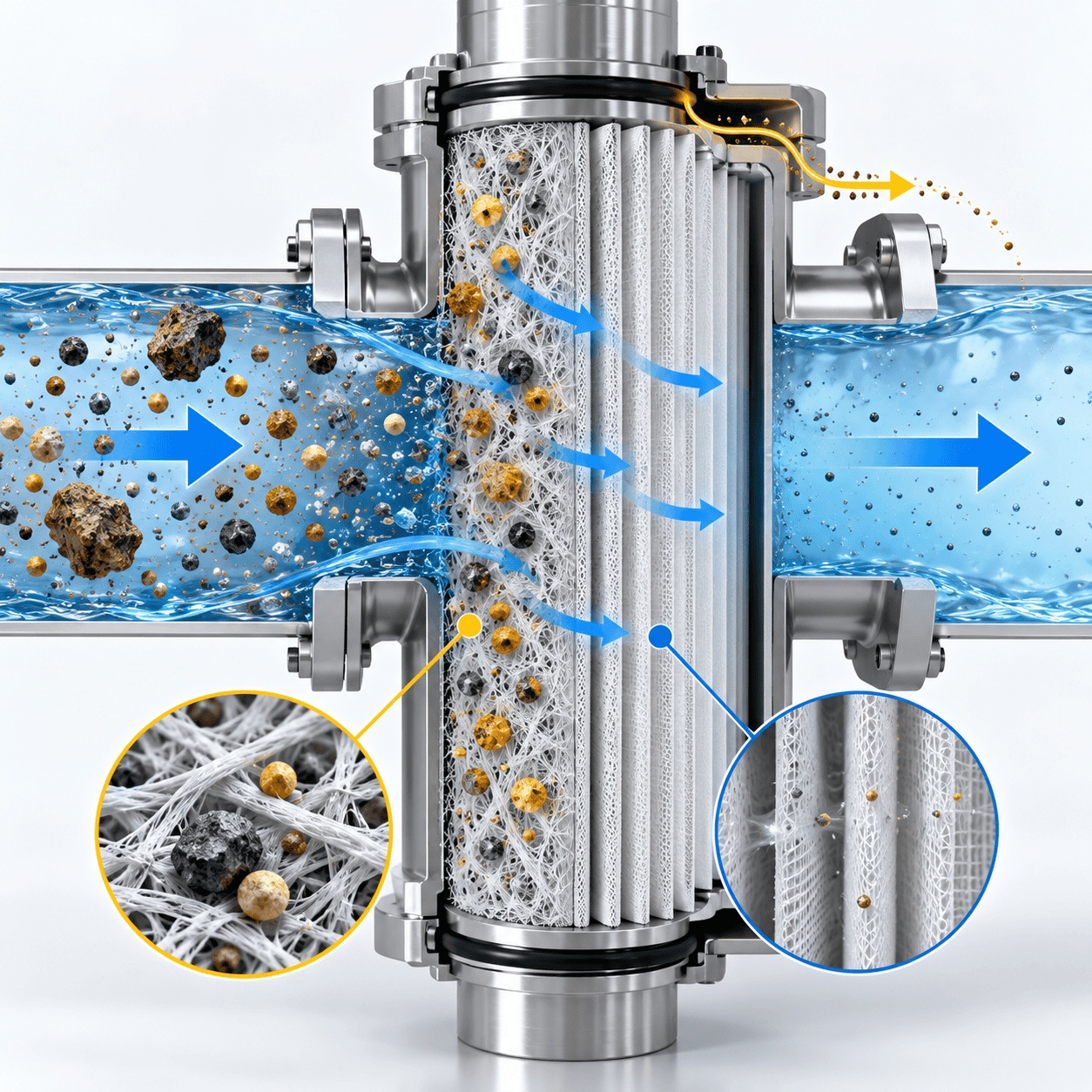

Technical filtration diagram showing particle capture through industrial filter media and bypass risk
Micron Size Is Only One Part of the Filtration Specification Particle distribution, media construction and removal efficiency should be considered together.

Good Filter Media Cannot Compensate for Bypass

Even a high-efficiency element will underperform if contaminated fluid can pass around the media. The vessel internals must maintain reliable separation between the dirty and clean sides throughout operation.

Improper bag seating
Damaged O-rings
Incorrect cartridge adapters
Poor tube-sheet sealing
Incorrect hold-down design
Deformed baskets or supports
Engineering Range

Filter Vessel Engineering & Customization

ChannelVessel can engineer the vessel shell, internals, filter-element interface, connections and support arrangement around the filtration duty, customer-selected element and project specification.

Vessel Type
Bag / Cartridge / High-Flow / Multi-Element / Duplex

Configuration is selected around contamination loading, filtration target and operating continuity.

Bag Configuration
#1 / #2 / #3 / #4 · Single to Multi-Bag

Large multi-bag arrangements can be engineered when greater filtration area is required.

Cartridge Length
10 / 20 / 30 / 40 in and Project-Specific

Internals can also be designed around customer-selected cartridge dimensions.

Cartridge Quantity
1–180+ Elements

Final quantity depends on element geometry, filtration area, viscosity, solids loading and vessel design.

Element Interface
DOE / SOE / 222 / 226 / Customer-Specified

Existing filter elements can be accommodated when dimensional and sealing data are provided.

Design Temperature
Project-Specific · 100°C+ Designs Available

Allowable temperature depends on vessel material, pressure, closure, seal and filter element.

Orientation
Vertical / Horizontal

Orientation is selected around footprint, maintenance clearance, element handling and process layout.

Closure
Bolted / Swing-Bolt / Quick-Opening

Closure selection should consider pressure, opening frequency, vessel diameter and operator handling.

Connections
Flanged / NPT / BSP / Tri-Clamp / Welded

Connection standard and pressure class can follow the project piping specification.

Nozzle Layout
Same-Side / Opposite-Side / Bottom Outlet / Custom

Nozzle orientation should follow actual piping routing, drainage and maintenance access.

Seal Materials
EPDM / NBR / FKM / PTFE / Project-Specific

Final elastomer or gasket selection follows fluid chemistry, temperature and cleaning conditions.

Differential Pressure
Upstream / Downstream Gauge or Transmitter Ports

Connections can be provided for local pressure gauges, DP gauges, transmitters or high-DP alarms.

Vent & Drain
High-Point Vent + Low-Point Drain

Manual or instrumented arrangements can be configured around filling, draining and maintenance procedures.

Surface Treatment
Polished / Pickled & Passivated / Sandblasted / Painted

Surface treatment depends on material, corrosion environment, cleanliness and project specification.

Supports
Legs / Skirt / Saddles / Skid-Mounted

Support arrangement is coordinated with vessel orientation, site loads and installation method.

Design Basis
ASME Section VIII / PED / Project Specification

Applicable code, inspection, documentation and stamping requirements should be confirmed during quotation.

These are configurable manufacturing ranges, not universal operating limits. Final dimensions, allowable pressure, temperature and element count are established from the process datasheet, selected filter media, mechanical calculation and applicable code.

Already Using a Specific Filter Element?

If you provide the element model, dimensions, length, end configuration and sealing details, the vessel internals can be engineered around the existing cartridge instead of forcing a new consumable format.

Element Dimensions DOE / SOE 222 / 226 Seal Arrangement
Materials & Compatibility

Material and Seal Selection Starts With the Process Fluid

Pressure rating alone does not determine the correct vessel material. Fluid chemistry, chloride concentration, pH, operating temperature, cleaning chemicals and the actual wetted components should be reviewed together.

Compare Common Vessel Materials Select a material to review where it typically fits.
Selected Material

Carbon Steel

Carbon steel can be a cost-effective choice for compatible industrial services where corrosion can be controlled through corrosion allowance, coating, lining or suitable process conditions.

Compatible oils and utilities
Controlled corrosion environment
Coating or lining where required
Cost-sensitive industrial duty
316L Is Not Automatically Corrosion-Proof

Chloride concentration, temperature, pH, cleaning chemicals, stagnant conditions and crevice locations should still be reviewed before selecting 316L for the service.

Filter vessel material and sealing components including stainless steel internals, tube sheet, basket and industrial gaskets
Material Selection Applies to More Than the Shell Baskets, tube sheets, supports, fasteners, nozzles and seals can all affect service life and contamination risk.

Check Every Wetted Component

A corrosion-resistant shell does not solve the problem if the internal parts in contact with the process fluid use an unsuitable material. The wetted-material specification should cover the complete filtration path.

Vessel Shell
Basket
Tube Sheet
Element Supports
Fasteners
Nozzles & Drains

Seal Compatibility Can Become the Operating Limit

Even when the metal vessel is compatible with the fluid, an incorrectly selected gasket or O-ring can swell, harden, crack or lose sealing performance.

EPDM Often considered for water and selected chemical services where compatible.
NBR Common in oil-related and general industrial sealing duties where suitable.
FKM Used where greater chemical and temperature resistance is required.
PTFE Selected for broad chemical compatibility and demanding process conditions.
Pressure Boundary & Safety

Pressure Vessel Requirements Still Apply to Filter Housings

Filtration performance is only one part of the design. When the housing operates as pressure equipment, the pressure boundary, closure, temperature range, vacuum condition and credible overpressure scenarios must also be defined.

Pressure Basis

Design Pressure

Design pressure should reflect the credible maximum pressure condition and the required design margin. It is not simply the normal operating pressure copied into a datasheet.

Completed Vessel Limit

MAWP

Maximum Allowable Working Pressure is established from the completed vessel geometry, materials and applicable code rules. It should not be confused with the process operating set point.

Thermal Design

Design Temperature

Temperature affects material allowable stress, gasket compatibility, closure selection and the filter element itself. Maximum and minimum credible conditions should both be identified.

External Pressure

Vacuum Conditions

Vacuum can occur during draining, cooling, condensation, pump suction or blocked-vent conditions. Full or partial vacuum should be specified when it is a credible operating case.

Keep the Product Page Focused on Procurement Decisions

Detailed code calculations, weld-joint rules, PWHT requirements and examination criteria belong in the technical standards and vessel-design resources rather than being repeated in full here.

Maintenance & Operability

Design for Maintenance Before the Vessel Is Fabricated

A filter vessel can be mechanically correct and still be difficult to operate if cartridge removal height, cover swing, draining, venting and operator access are ignored during layout.

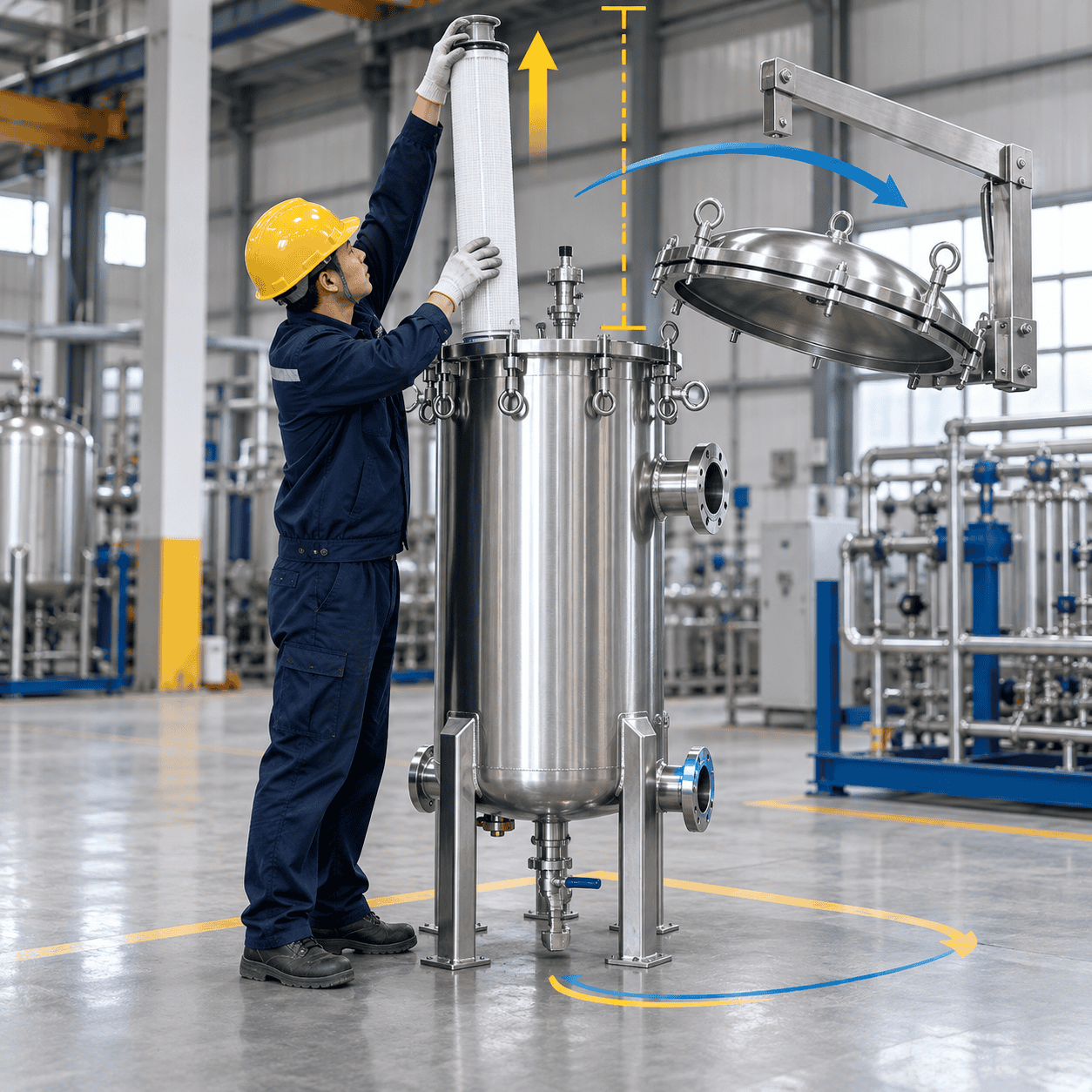

Filter vessel maintenance clearance showing cartridge removal height and open cover access
Maintenance Clearance Is Part of the Equipment Design Check element removal height, cover opening radius and operator access before piping and structures are fixed around the vessel.
Inlet Layout Changes the Maintenance Experience Select a layout to compare the practical considerations.
Selected Arrangement

Top-Entry Arrangement

A top-entry arrangement can improve flow into some bag-filter configurations and may simplify element seating and changeout. It can also reduce the need for operators to reach deeply into a vessel containing residual liquid.

  • Check overhead pipework and cover access
  • Coordinate inlet piping with the opening envelope
  • Confirm drainage before element removal
  • Verify lifting and handling space
Monitor Differential Pressure, Not Just Calendar Time

Upstream and downstream pressure connections can support local gauges, DP gauges, transmitters or high-DP alarms. Final changeout limits should follow the selected element and the process requirement.

Check the Maintenance Envelope Before Fabrication

These items are easier to correct in the drawing stage than after the filter vessel is installed beneath pipework, platforms or cable trays.

Vertical Clearance Cartridge or bag removal height
Closure Space Cover opening and davit swing radius
Liquid Removal Low-point drain routing
Depressurization High-point vent access
Operator Access Safe standing and handling area
Instrument Access Pressure and DP gauge visibility
Internal Removal Basket and support removal path
Site Interface Platforms, valves and structure conflicts
System Arrangement

Single, Parallel, Duplex or Staged Filtration?

The vessel arrangement should follow the operating requirement. Flow capacity, redundancy, maintenance continuity and contaminant distribution can all change the most suitable filtration layout.

Process Inlet
Online Single Filter Vessel
Filtered Outlet
Best when short shutdowns are acceptable and filter changes do not need an online standby path.
Process Inlet
Online Filter Vessel A
Online Filter Vessel B
Combined Outlet
Parallel vessels increase available filtration area and can reduce loading per vessel when flow is distributed correctly.
Process Inlet
Duty Online Vessel
Standby / Service Isolated Vessel
Continuous Outlet
One side remains online while the second side is isolated, drained and serviced. Valve switching and no-bypass logic are part of the system design.
Dirty Inlet
Stage 1 Coarse Filter
Stage 2 Intermediate Filter
Stage 3 Fine Filter
Clean Outlet
A coarse upstream stage can reduce solids loading on finer downstream elements and extend their operating life.
Industry Applications

Filter Vessel Design Changes With the Process

The same filter vessel should not be copied from one industry to another without reviewing corrosion, solids loading, operating pressure, cleanliness, maintenance strategy and documentation requirements.

Filter vessel applications in the chemical industry
Chemical Processing

Chemical Industry

Chemical filtration can involve corrosive liquids, solvents, resins and solids-bearing streams. Material compatibility and seal selection often become primary design inputs.

Corrosion Seal Compatibility Solids Loading
Explore Chemical Industry →
Filter vessel applications in petrochemical processing
Hydrocarbon Processing

Petrochemical Industry

Petrochemical filtration can combine elevated pressure, hydrocarbon compatibility and continuous production requirements within one service.

Pressure Hydrocarbon Service Continuous Duty
Explore Petrochemical Industry →
Industrial filter vessel applications for oil and gas processing
Field & Process Service

Oil & Gas Industry

Filter vessels may handle fuels, lubricants, process chemicals and utility streams where pressure, solids and service continuity must be considered together.

Higher Pressure Solids Control Duty / Standby
Explore Oil & Gas Industry →
Filter vessel applications for industrial water treatment
Pretreatment & Protection

Water Treatment

Water-treatment filter vessels can remove suspended solids and protect pumps, membranes and downstream equipment from premature fouling.

High Flow RO Protection Suspended Solids
Explore Water Treatment →
Filter vessel applications in food and beverage processing
Product-Contact Filtration

Food & Beverage Industry

Food and beverage filtration places greater emphasis on cleanability, drainability, suitable elastomers and product-contact surface requirements.

Cleanability Drainability Sanitary Connections
Explore Food & Beverage →
Filter vessel applications for pharmaceutical processing
High-Control Processing

Pharmaceutical Industry

Pharmaceutical filtration can require tighter control of material traceability, surface finish, cleanability, hygienic connections and project documentation.

Traceability Surface Finish Documentation
Explore Pharmaceutical Industry →
Fabrication & Quality Control

Filter Vessel Quality Is Built Before the Pressure Test

Reliable filter vessels depend on controlled materials, qualified welding, dimensional accuracy, inspection and complete documentation throughout fabrication—not only on the final hydrotest.

Material Control Traceability and certificates
Fabrication Cutting, forming and fit-up
Welding Qualified procedures as required
NDE Inspection to project scope
Pressure Test Boundary integrity verification
Final Release Inspection and documentation
Inspection Points That Matter The exact scope follows the applicable code, service conditions and purchase specification.
Material Control MTR / MTC and Heat-Number Traceability

Material identification and PMI can be included where the project or service requires additional verification.

Welding Control WPS / PQR / Welder Qualification

Pressure-retaining welds can be manufactured under qualified procedures and personnel where required by the code or project.

Nondestructive Examination VT / PT / MT / RT / UT as Applicable

The inspection method and extent should match the vessel design, material, service and agreed inspection plan.

Dimensional Control Nozzle Orientation, Supports and Internal Alignment

Tube sheets, baskets, closure alignment and skid interfaces should be checked before final release.

Pressure Boundary Hydrostatic Testing

Hydrotesting is commonly used to verify pressure-boundary integrity. Alternative test methods should follow the applicable code and approved procedure.

Typical Project Deliverables

Know What You Receive With the Vessel

Documentation can be adjusted to the customer, EPC, third-party inspection and project quality requirements.

Approved GA Drawing
Vessel Datasheet
Nozzle Schedule
Material Certificates
WPS / PQR / WPQ
Weld Map When Specified
NDE Reports
Hydrotest Report
Dimensional Inspection
Surface Treatment Records
Filter Element Specification
Recommended Spare Gasket List
Nameplate Data
O&M Information
Manufacturing Record Book
Project-Specific QA Documents
EPC / Third-Party Inspection Can Be Built Into the ITP

Witness points, hold points and document-review requirements can be incorporated when they are identified in the purchase specification.

Quality Requirements Should Be Agreed Before Fabrication Starts

Inspection scope, code stamping, documentation format and customer witness requirements are much easier to control when they are defined during quotation and drawing approval.

RFQ Preparation

You Do Not Need a Complete Datasheet to Start

A preliminary filter-vessel selection can begin with a small amount of process information. More detailed data can be added later to refine the element count, vessel geometry, material, code and maintenance arrangement.

Minimum Data for Preliminary Selection Six inputs are enough to begin.
Start Here
Process Medium Fluid to Be Filtered
Hydraulic Duty Normal or Maximum Flow Rate
Pressure Operating Pressure
Temperature Operating Temperature
Filtration Target Micron Rating or Required Outlet Quality
Material Preferred Material, If Already Specified
Viscosity
Density
Solids Concentration
Particle-Size Distribution
Required Removal Efficiency
Design Pressure
Design Temperature
Operating Cycle
Required Service Interval
Existing Filter Element Model
DOE / SOE / 222 / 226 Interface
Nozzle Orientation
Flange Standard
Design Code
Surface Finish
Chinese engineers reviewing filter vessel GA drawings and P&ID documents in a fabrication workshop
Existing Drawings Can Speed Up Engineering Review A P&ID, GA, datasheet or existing filter-element specification can eliminate unnecessary back-and-forth during selection.
Existing Documents

If You Already Have Project Documents, Send Them

We can review the existing process information and develop the vessel configuration around the actual filtration duty instead of asking you to rebuild the specification from the beginning.

P&ID Process connections, valves, instrumentation and system interfaces.
GA Drawing Available space, nozzle orientation and installation constraints.
Process Datasheet Flow, pressure, temperature, medium and design conditions.
Equipment Specification Code, materials, documentation and customer requirements.
Existing Vessel Drawing Useful for replacement, upgrade or capacity expansion projects.
Filter Element Datasheet Dimensions, interface, media and sealing information.
Start With What You Already Know

You do not need every engineering parameter before contacting us. Send the basic process conditions or your existing drawings first, and the remaining design inputs can be confirmed during technical review.

Frequently Asked Questions

Filter Vessel FAQs

These are the questions that most often affect vessel selection, compatibility, code requirements and project quotation.

The terms are often used interchangeably. “Filter housing” is common for standard equipment, while “filter vessel” is often used for larger, engineered or pressure-code designs where the shell, internals, closure and documentation are customized to the process duty.

Bag filters are commonly selected for higher solids loading and coarse-to-medium filtration. Cartridge filters are generally preferred for finer filtration, larger media area or polishing duties. The actual decision should also consider viscosity, pressure drop, service interval and operating cost.

Yes. If you provide the cartridge dimensions, length, end configuration, sealing arrangement and element datasheet, the internal tube sheet, hold-down and sealing interface can be engineered around the existing consumable format.

Common arrangements include DOE, SOE, 222 and 226 interfaces. Project-specific cartridge dimensions and sealing connections can also be considered when sufficient dimensional and performance data are available.

It depends on pressure, jurisdiction, project specification and the applicable regulatory requirements. Where ASME Section VIII is specified, the vessel can be engineered around those requirements. See our Codes & Standards resource for more detail.

Code stamping, inspection, documentation and third-party requirements can be reviewed during quotation when they are part of the purchase specification. The exact code edition, stamp requirement and documentation scope should be confirmed before fabrication.

Yes, when full vacuum or another external-pressure condition is specified as a design case. Vacuum should be identified before fabrication because it can materially change the required shell and reinforcement design.

The required maintenance height depends on cartridge length, the internal hold-down arrangement, cover geometry and operator handling space. A 40-inch cartridge vessel should be checked against overhead pipework, platforms and structural steel before the final site layout is frozen.

Yes. Filter vessels can be integrated with pumps, isolation valves, bypass piping, flowmeters, differential-pressure monitoring and controls as part of a duplex or packaged filtration system. See Custom Separation Systems.

For a preliminary selection, provide the fluid, flow rate, operating pressure, operating temperature, filtration target and preferred material if known. Viscosity, solids loading, design conditions, filter-element details and drawings can be added later for final engineering.

Engineering Review

Send Your Process Conditions — We’ll Size the Vessel Around the Duty

A reliable filter vessel starts with the process, not a catalog model number. Send the basic operating conditions or your existing drawings, and the vessel shell, filter-element interface, internals, connections and maintenance arrangement can be engineered around the actual filtration duty.

Hydraulic Duty Flow Rate
Pressure Operating / Design Pressure
Temperature Operating / Design Temperature
Process Medium Fluid
Contamination Solids Loading
Performance Target Filtration Requirement
Already Have a P&ID, GA or Filter-Element Datasheet?

Send it with your inquiry. Existing project documents can help confirm nozzle orientation, element interface, available space and the correct vessel configuration faster.

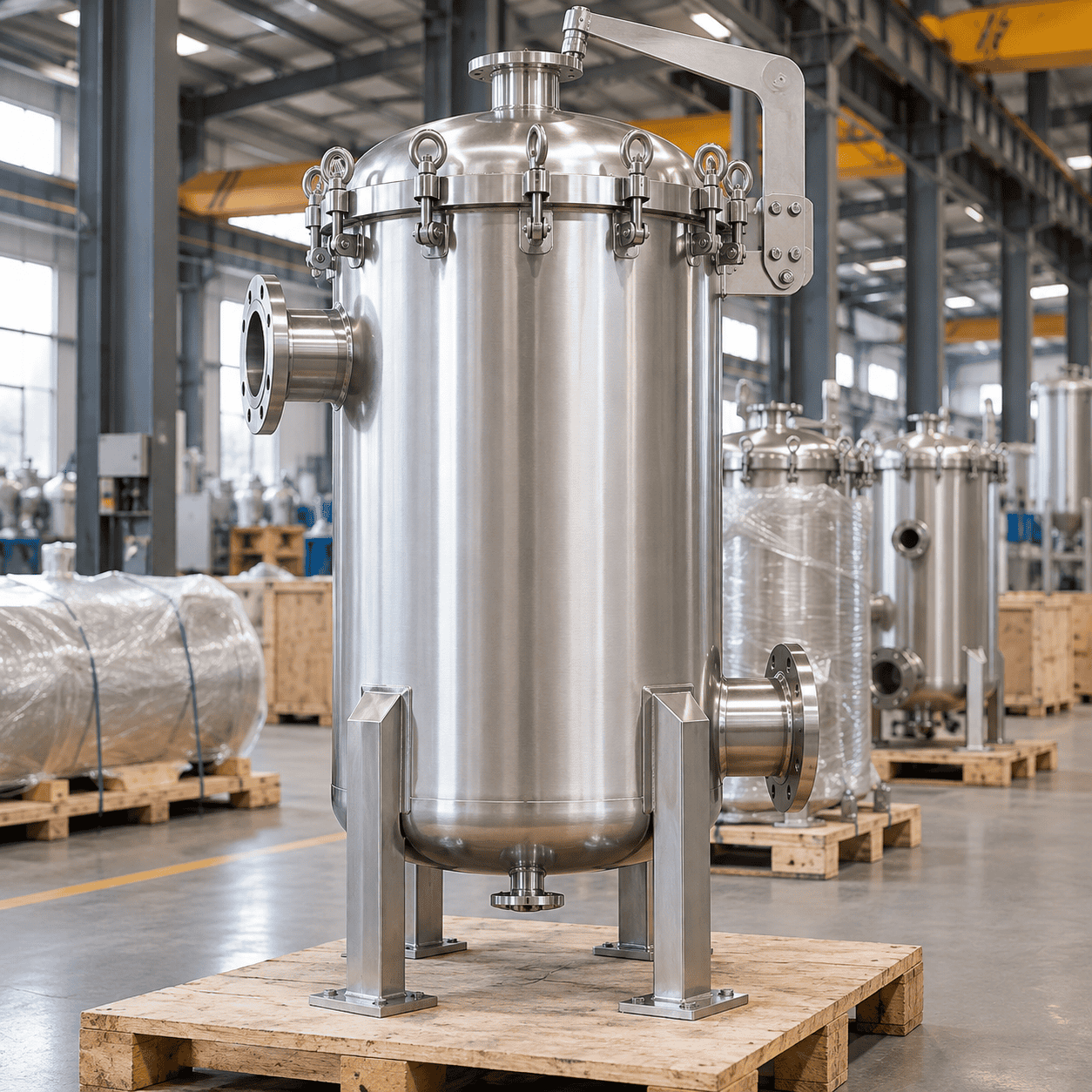

Completed stainless steel industrial filter vessel ready for final inspection and shipment
Engineered From Process Data to Final Fabrication Use the final CTA image for a newly completed filter vessel or a clean finished-equipment factory scene.
Scroll to Top
DRAWING & FILE REVIEW

Send Your Drawings

Upload your drawings, datasheets or existing specifications. Our engineering team will review the files and respond with technical feedback.

Engineering Review

Drawings, specifications and process requirements

Confidential File Handling

Project files are used only for technical review and quotation

Faster Technical Feedback

Clearer inputs help us respond more accurately and efficiently

DRAWING & FILE REVIEW

Send Your Drawings

Upload your drawings, datasheets or specifications. Our engineering team will review your files and provide technical feedback.

Contact Form Demo (#3)
Project Protected NDA available
12h Response
ASME / PED
AFTER SUBMISSION
01 Review
→
02 Confirm
→
03 Quote
TECHNICAL QUOTATION

Get a
Technical Quote

Tell us what you need. Our engineering team will review your requirements and respond within 12 hours.

Engineered for Your Application

From concept to certified manufacturing

Global Compliance

ASME, PED and other international standards

Expert Support

Direct access to our engineering team

TECHNICAL QUOTATION

Get a Technical Quote

Tell us what you need. Our engineering team will review your requirements and respond within 12 hours.

Contact Form Demo
Project Protected NDA available
12h Response
ASME / PED
AFTER SUBMISSION
01 Review
→
02 Confirm
→
03 Quote
